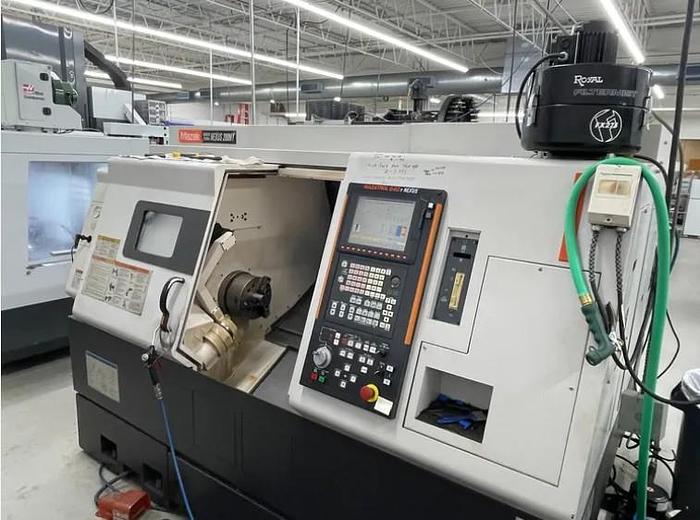

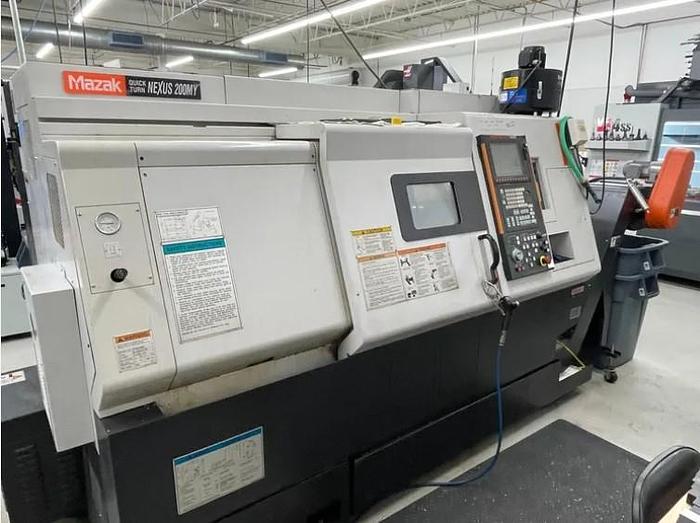

2004 Mazak Nexus QTN 200 MY with Milling, Y Axis, Chip Conveyor, Tailstock, Tool Presetter, 8" Chuck, 2" Bar Capacity
2004 Mazak Nexus QTN 200 MY with Milling, Y Axis, Chip Conveyor, Tailstock, Tool Presetter, 8" Chuck, 2" Bar Capacity
Contact us for price
Location:Minnesota
or
Call (863) 439-6066
Description
Y Axis Capability (Off Center)
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
8" 3 Jaw Kitagawa B208 Hydraulic Chuck
Automatic Tool Eye
Chip Conveyor
Programmable Tailstock
EIA/ISO Input Function
Chuck Open/Close Confirmation
Mill Spindle Synchronous Tapping
Network Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Multi Tap Transformer
Coolant System with Tank & Pump
Miscellaneous Static Tool Holders
(6) Live Tool Holders
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250-II MY |
| Year | 2004 |
| Condition | Used |
| Stock Number | 119991159-18 |

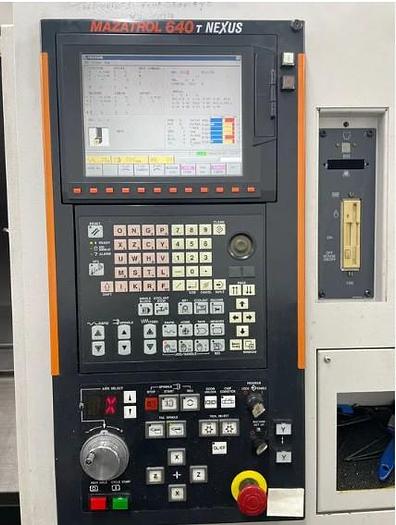

| Control | Mazatrol Fusion 640T Nexus |
| Chuck Sizes | 8" 3 Jaw Hydraulic |
| Maximum Swing/Over Carriage | 26.58" / not avail. |
| Maximum Cutting Diameter | 14.75" |
| Maximum Cutting Length | 21.28" |
| X-Axis Travel | 9.05" |
| Y-Axis Travel | 4" (+/- 2.0") |
| Z-Axis Travel | 22.63" |
| C Axis Spindle Rotation | 0.001 Degree |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3.0" / 2.01" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 35 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |

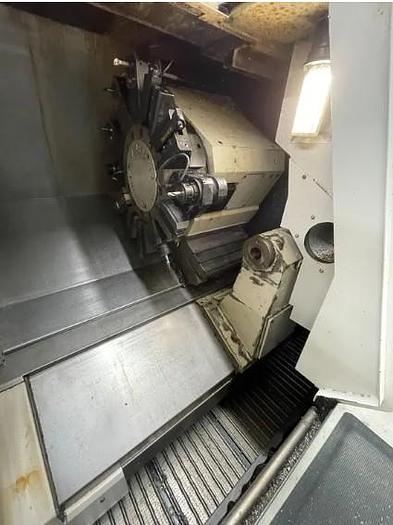

| Number of Turret Positions | 12 Station Turret - Modified VDI |
| Rapid Traverse Rates X/Z | 1181 IPM / 1299 IPM |
| Tailstock Body Travel / Tailstock Taper | 21.75" / MT #5 |
| Machine Dimensions | 137" x 74" x 73" |
| Machine Weight | 11,000 lbs. |
