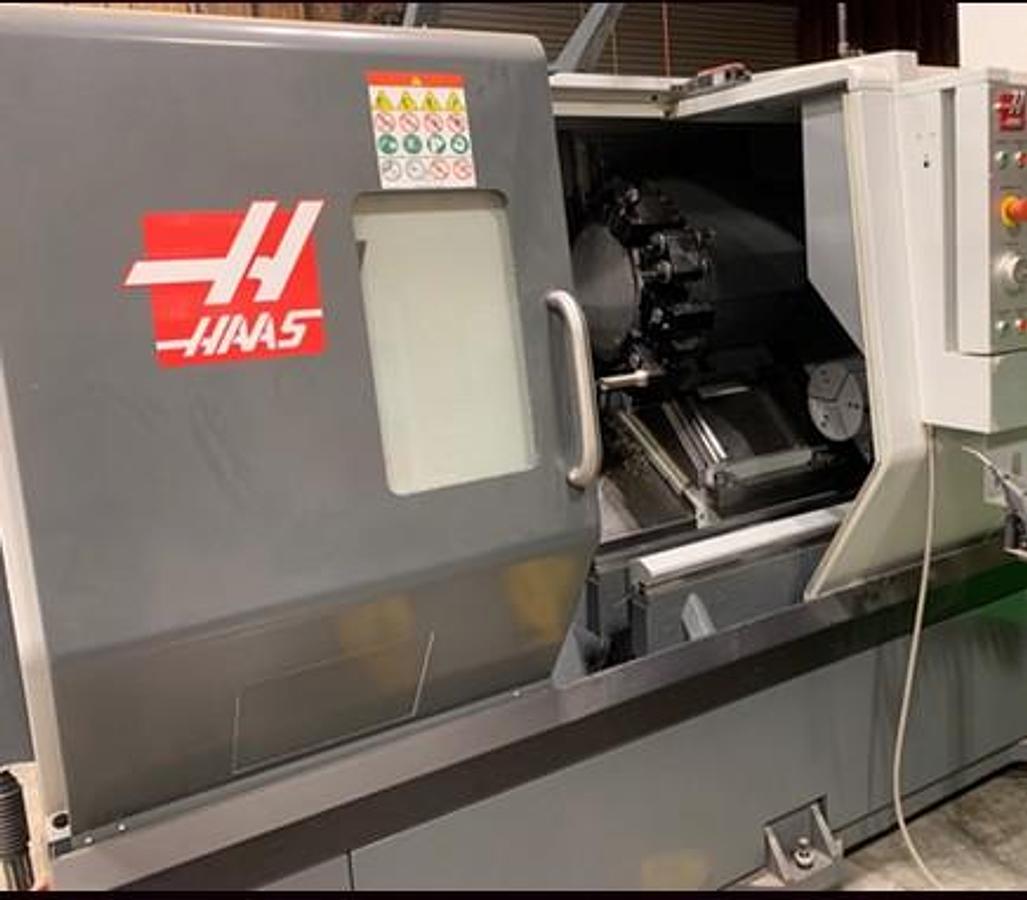

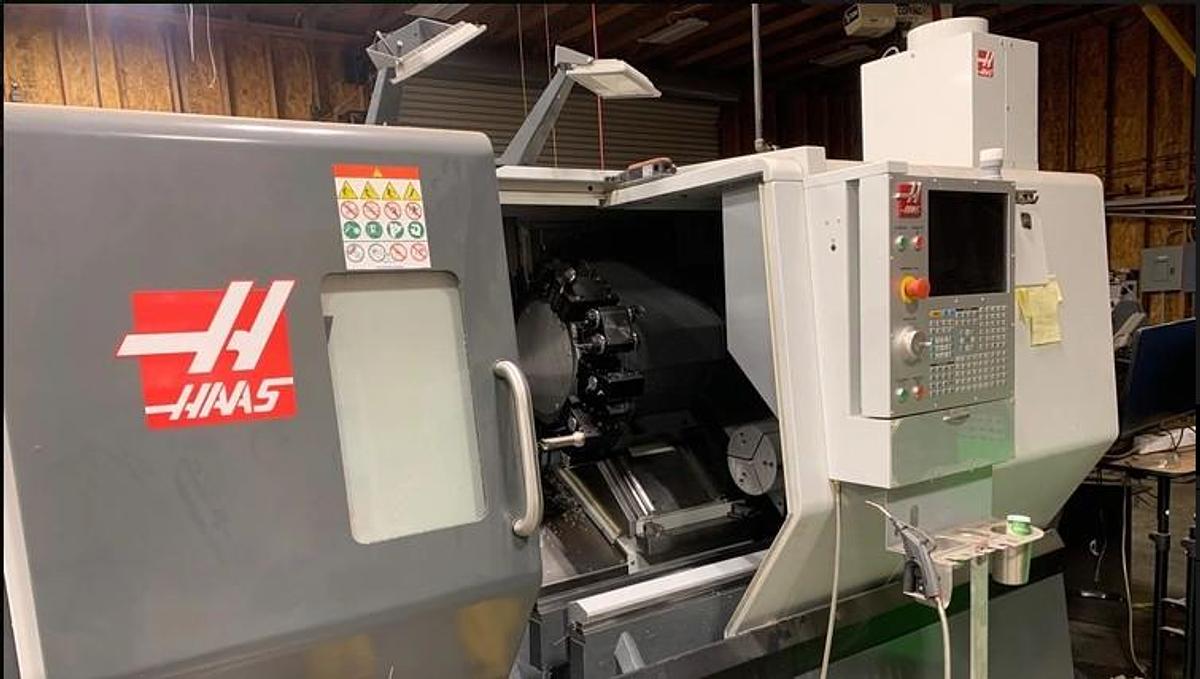

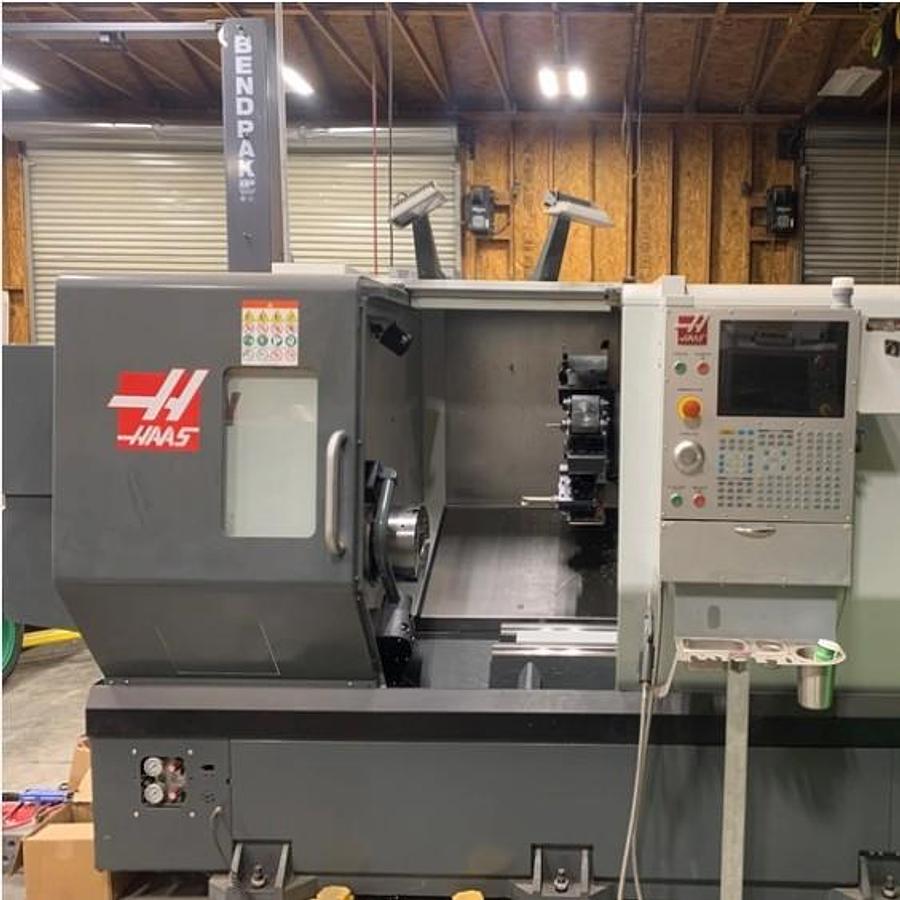

2021 Haas DS-30Y with Subspindle, Y Axis, C Axis, High Pressure Coolant, Chip Conveyor
2021 Haas DS-30Y with Subspindle, Y Axis, C Axis, High Pressure Coolant, Chip Conveyor
$139,900 (USD)
Location:CA
or
Call (863) 439-6066
Description
Y-Axis Capability
Live Milling (4,000 RPM)
Full C Axis Spindle Rotation
Subspindle

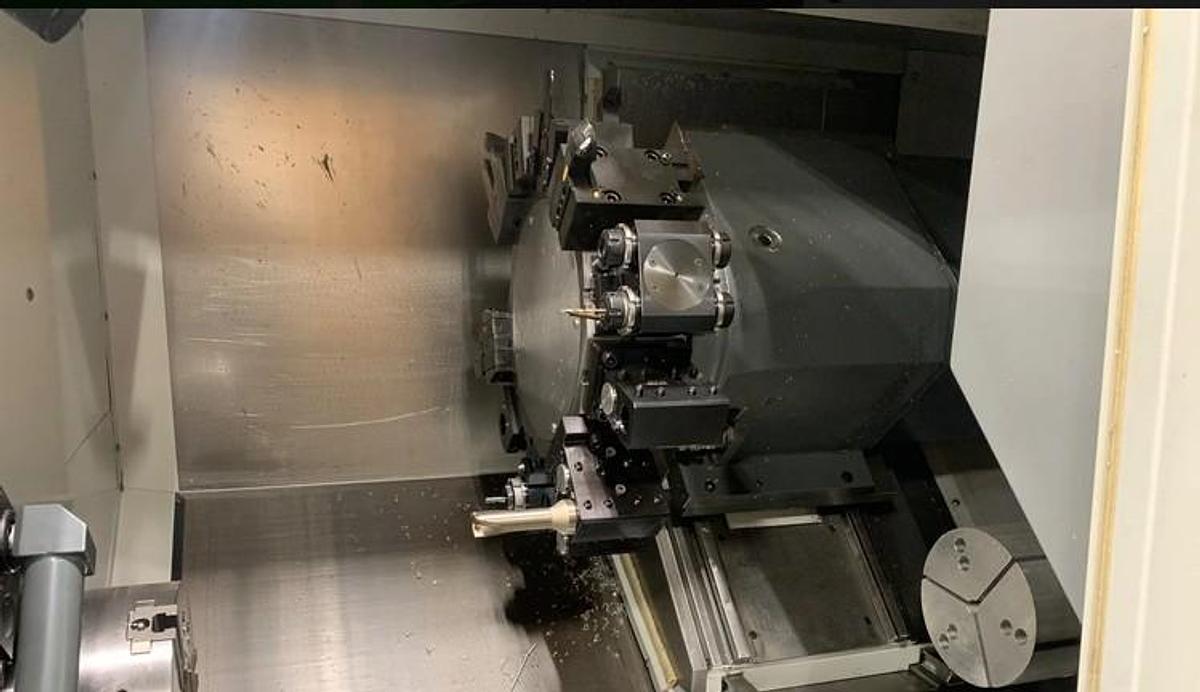

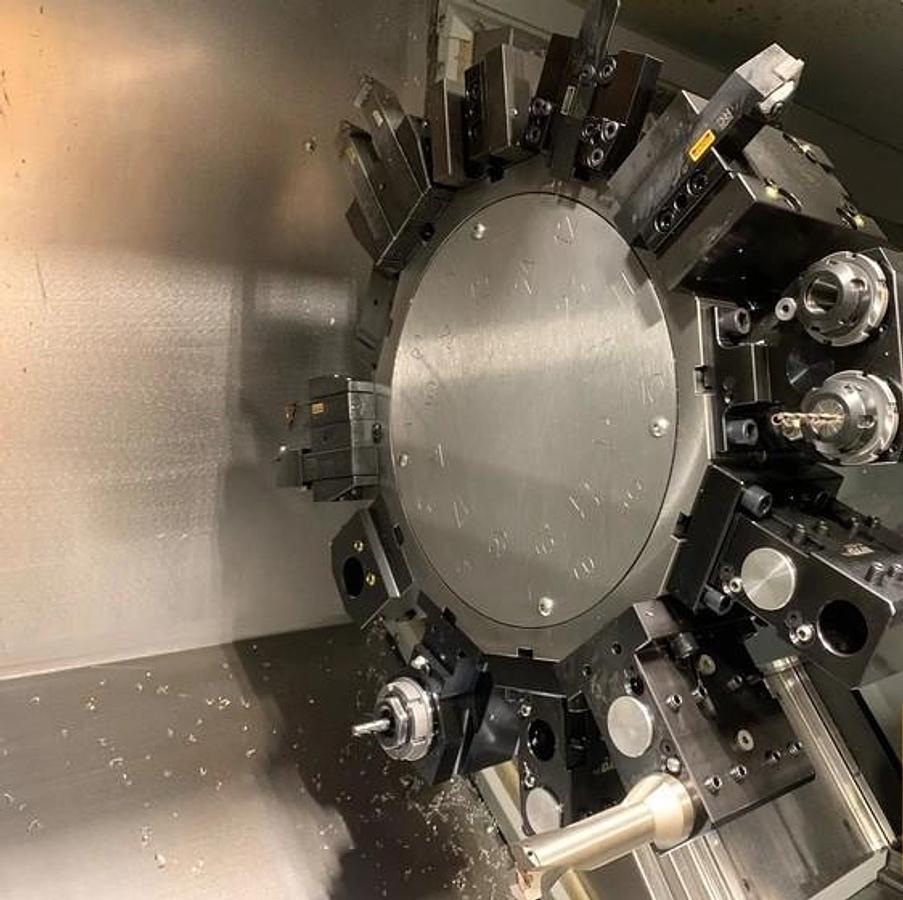

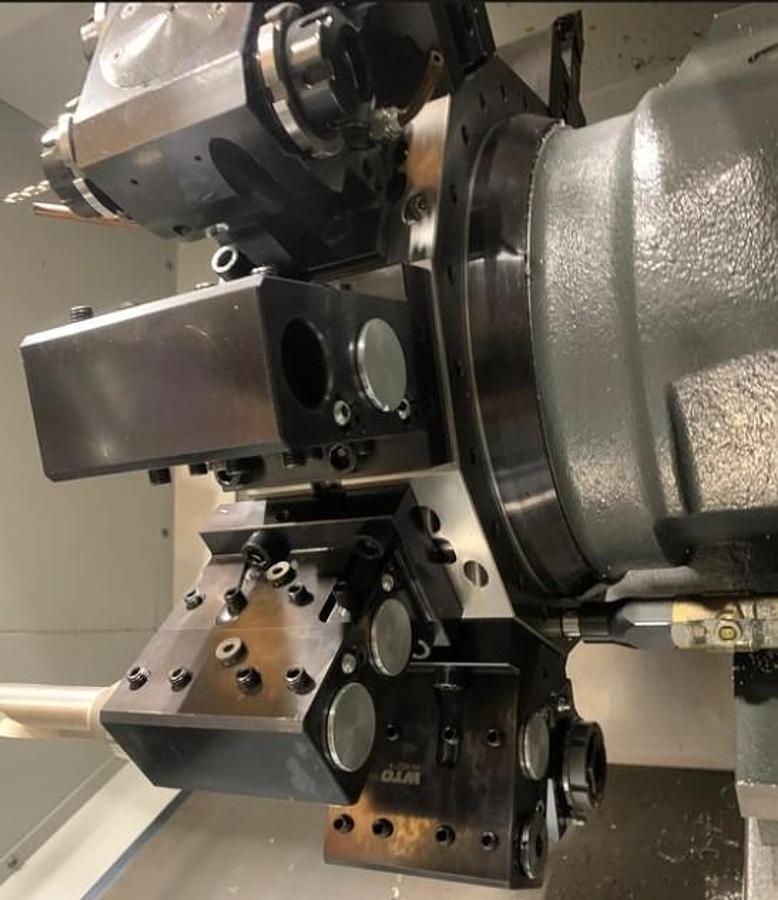

12 Position Turret w/Live Milling

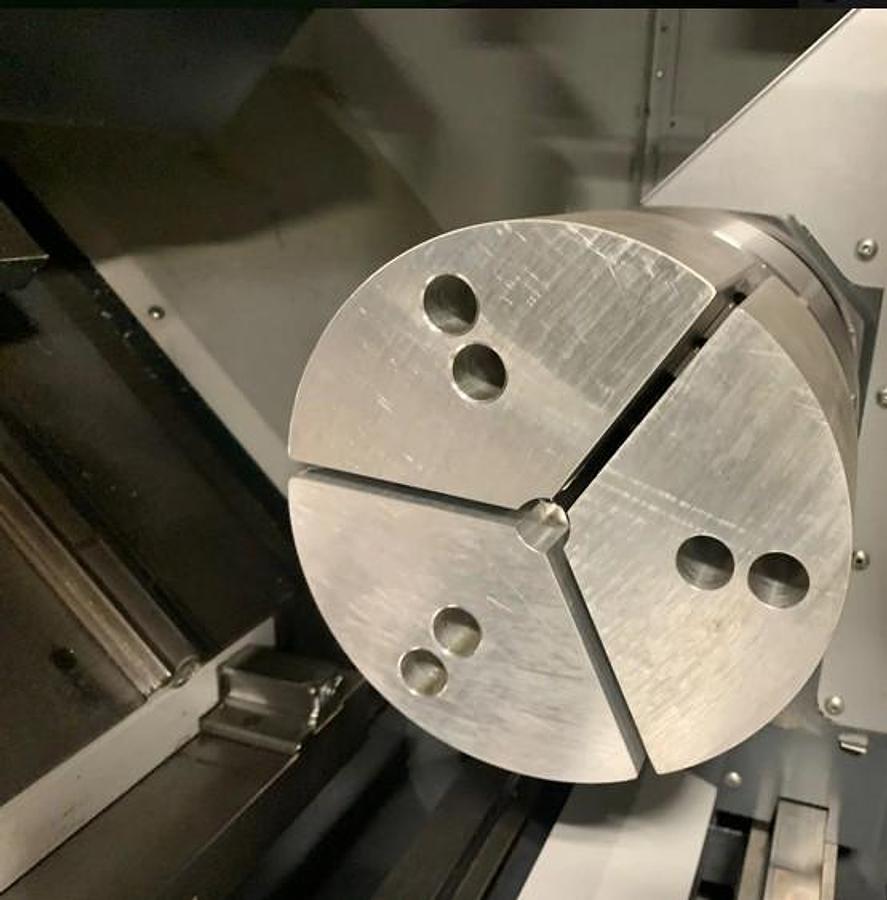

10" 3-Jaw Chuck for Main Spindle

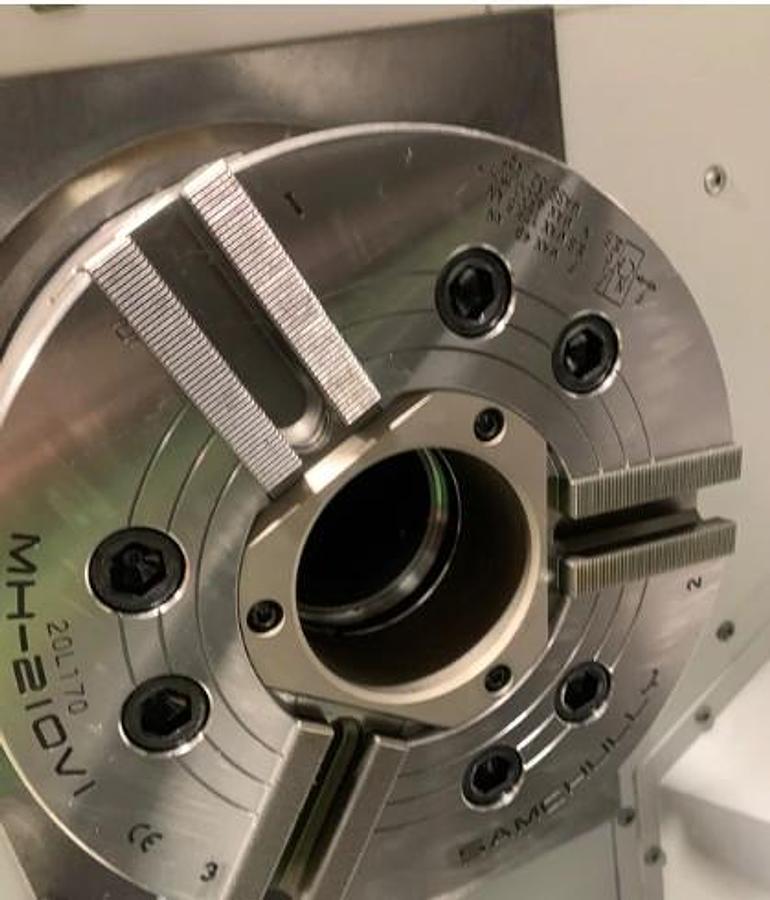

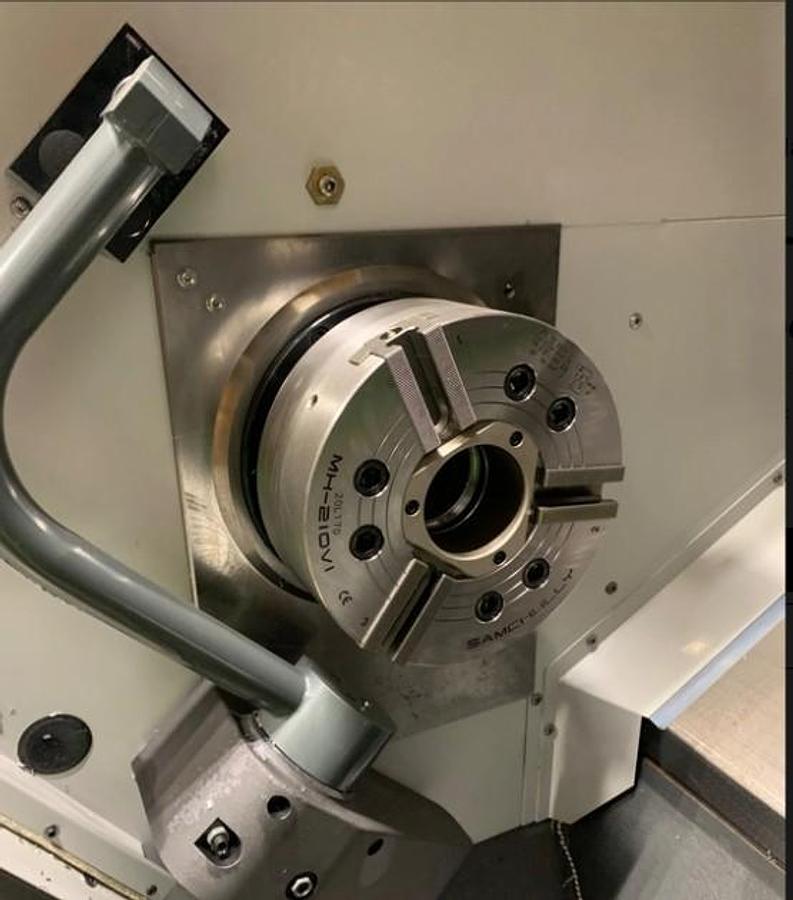

8" 3-Jaw Chuck for Subspindle
Tool Presetter

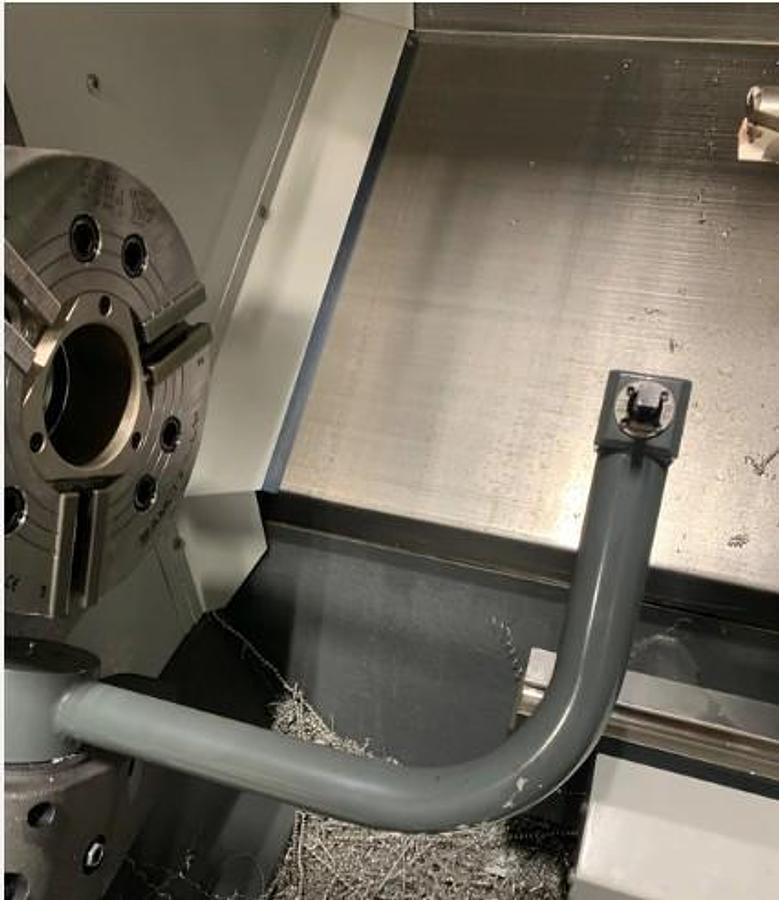

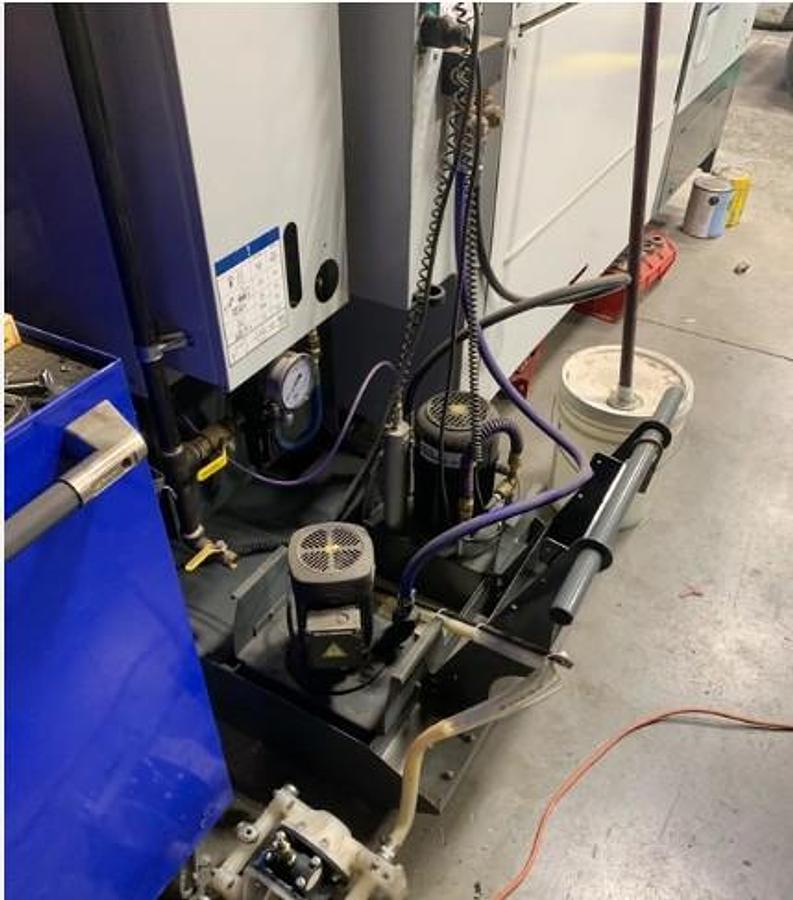

300 PSI High Pressure Coolant
6,000 RPM Live Milling Option
Belt Style Chip Conveyor
Spindle Orientation
Rigid Tapping
Variable Flow Coolant Pump
User Definable Macros
CNC Control Cabinet Cooler
Enclosure Exhaust System
HIgh Intensity Lighting
Visual Part Programming System
Low Voltage Transformer
1 GB Programming Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface

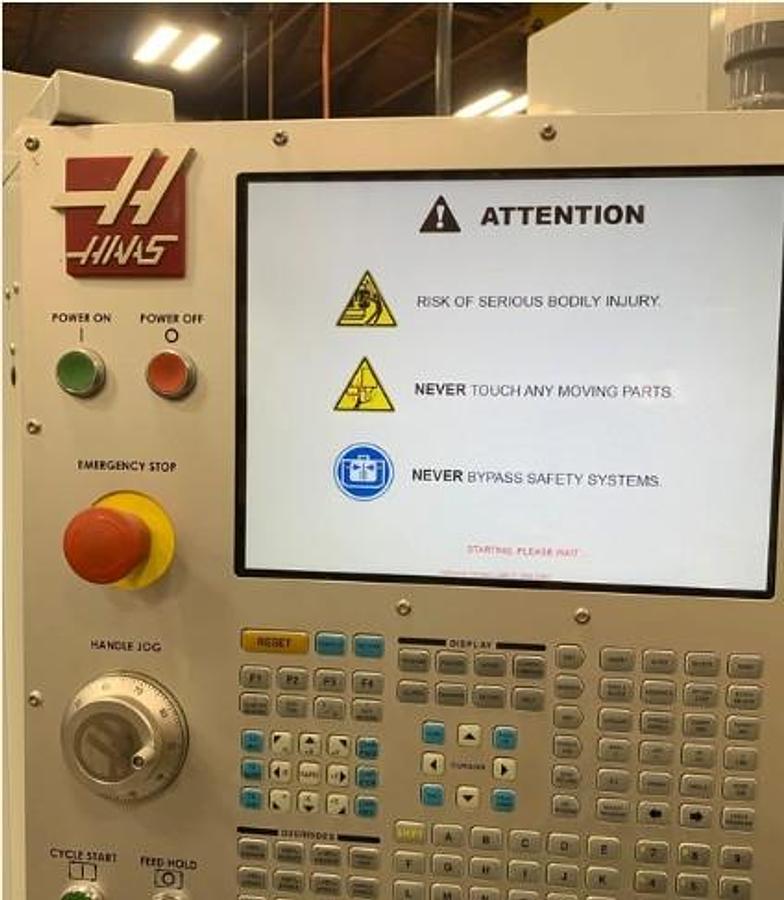

Haas Control w/ WiFi Connection
Toolholder Package

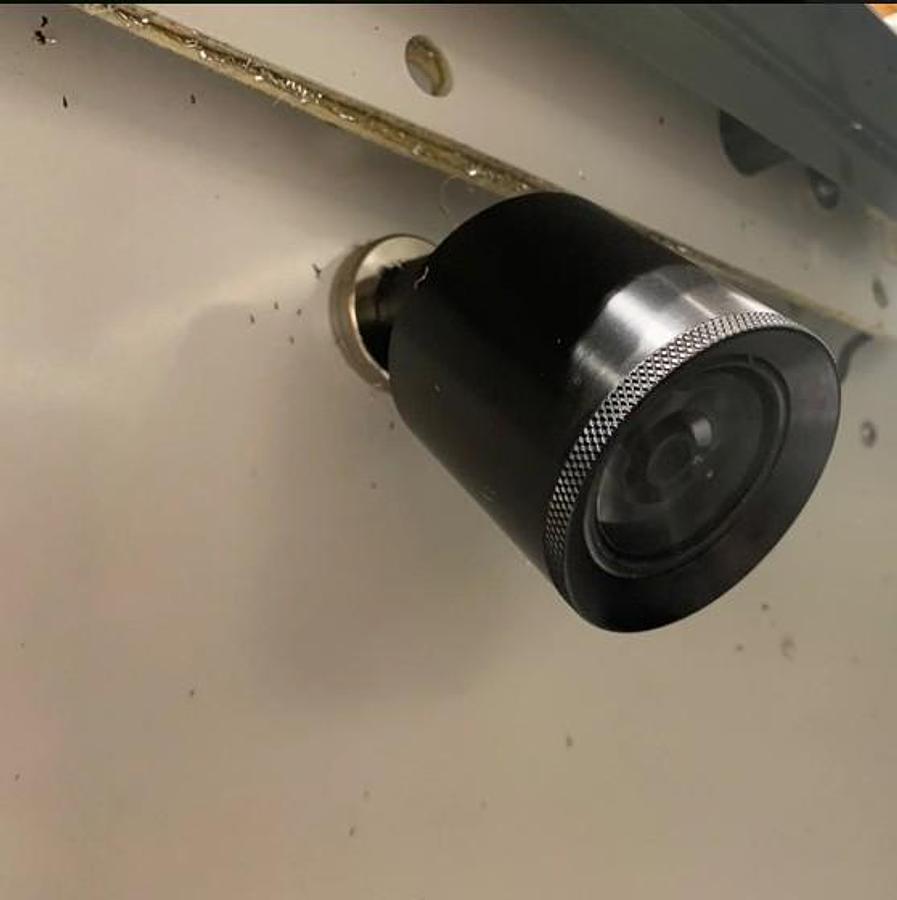

Wifi Camera

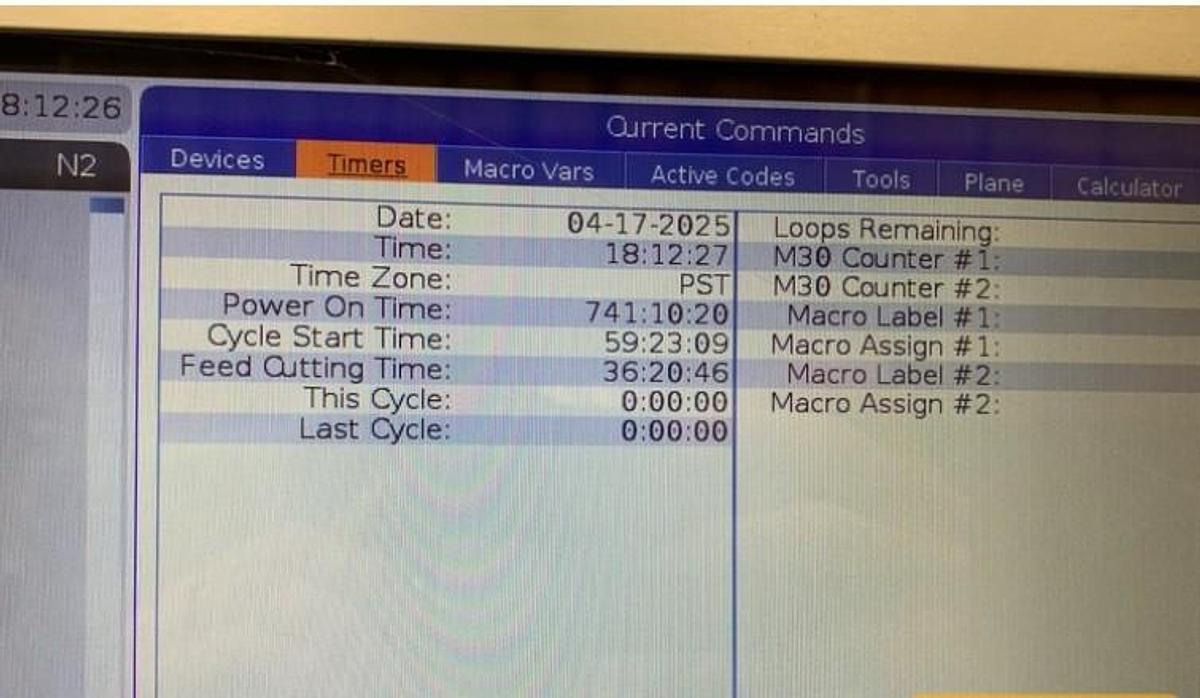

**ONLY 741 Power On Hours**
Specifications
| Manufacturer | Haas |
| Model | DS-30Y |
| Year | 2021 |
| Condition | Used |
| Stock Number | 119999 |
| Chuck Sizes Main / Subspindle | 10" / 8" |
| Maximum Swing over Bed | 31.75" |
| Maximum Swing Over Cross Slide | 20.75 |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 23" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| C-Axis Rotation | Full C-Axis |
| Spindle Nose / Bore / Bar Capacity | A2-6 / 3.5" / 3" |
| Spindle Motor | 30 HP |
| Spindle Speeds | 0-4,800 rpm |
| Subspindle Nose / Bore / Bar Capcity | A25 / 2.4" / 2" |
| Subspindle Motor | 20 hp |
| Subspindle Speed | 4,800 rpm |
| Turret Type | 24 Position BMT65 |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 5 hp |
| Rapid Traverse Rates X, Y / Z | 472 ipm / 1,200 ipm |
| Machine Dimensions LxWxH | NA |
| Machine Weight | 14,600 lbs |
