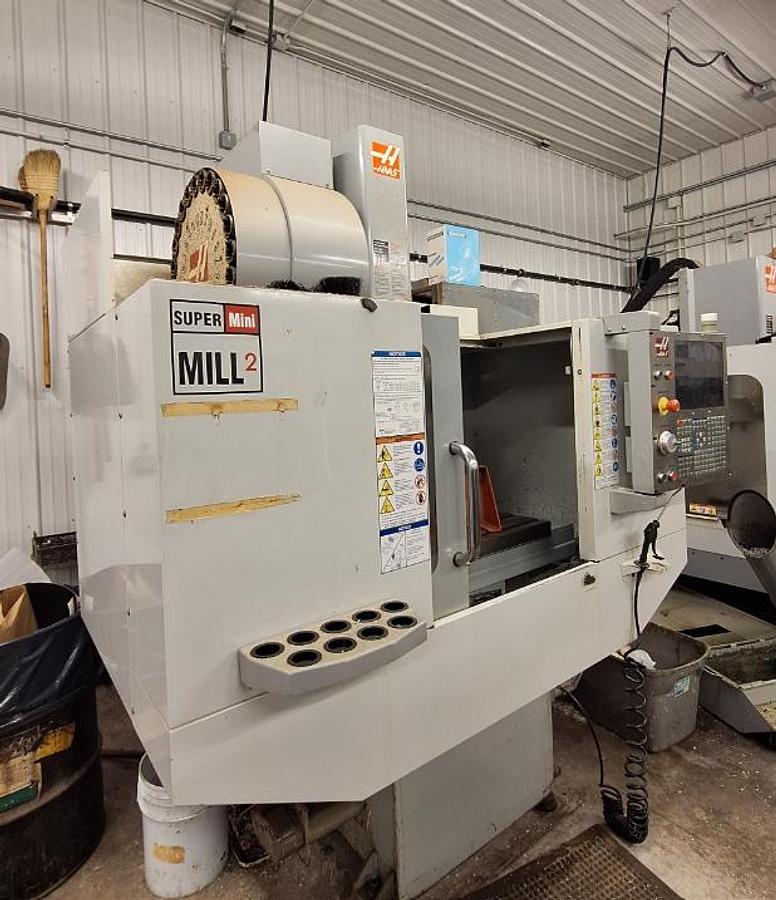

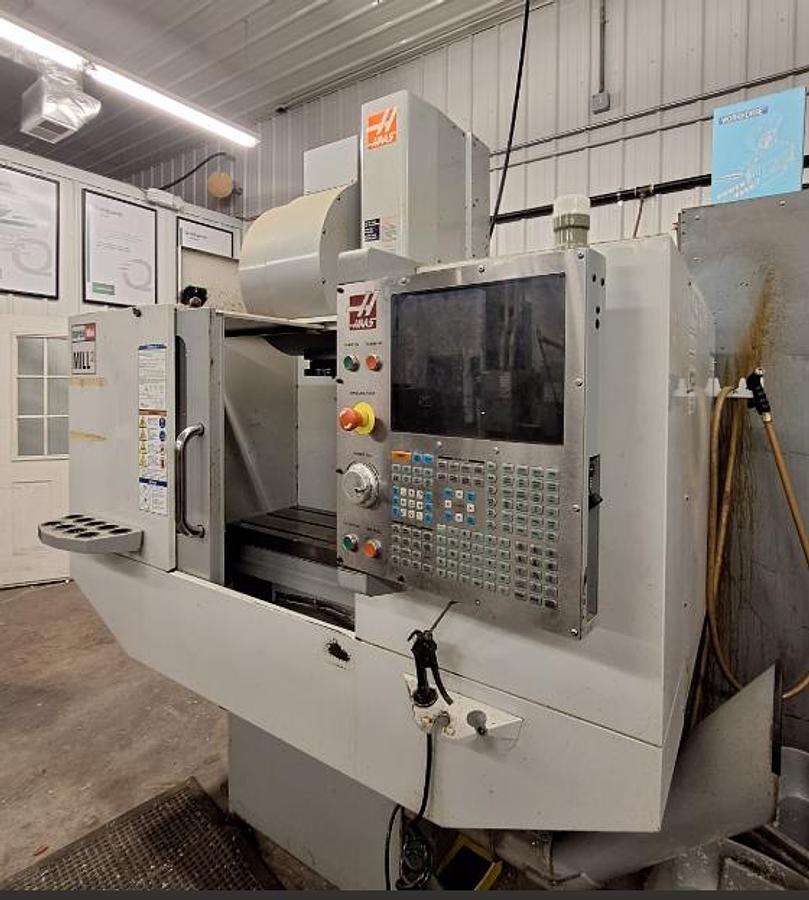

2009 Haas Super Mini Mill 2 with 24 Station Side Mount ATC, Auger Style Chip Conveyor, USB Port Interface
2009 Haas Super Mini Mill 2 with 24 Station Side Mount ATC, Auger Style Chip Conveyor, USB Port Interface
Contact us for price
Location:Tennessee
or
Call (863) 439-6066
Description
24 Station Side Mounted Tool Changer
10,000 RPM Spindle
Auger Style Chip Conveyor
15" Color LCD Monitor
Memory Lock Keyswitch
USB Port Interface
RS 232 Port Interface
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 120005 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 24 Station Side Mounted ATC |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
