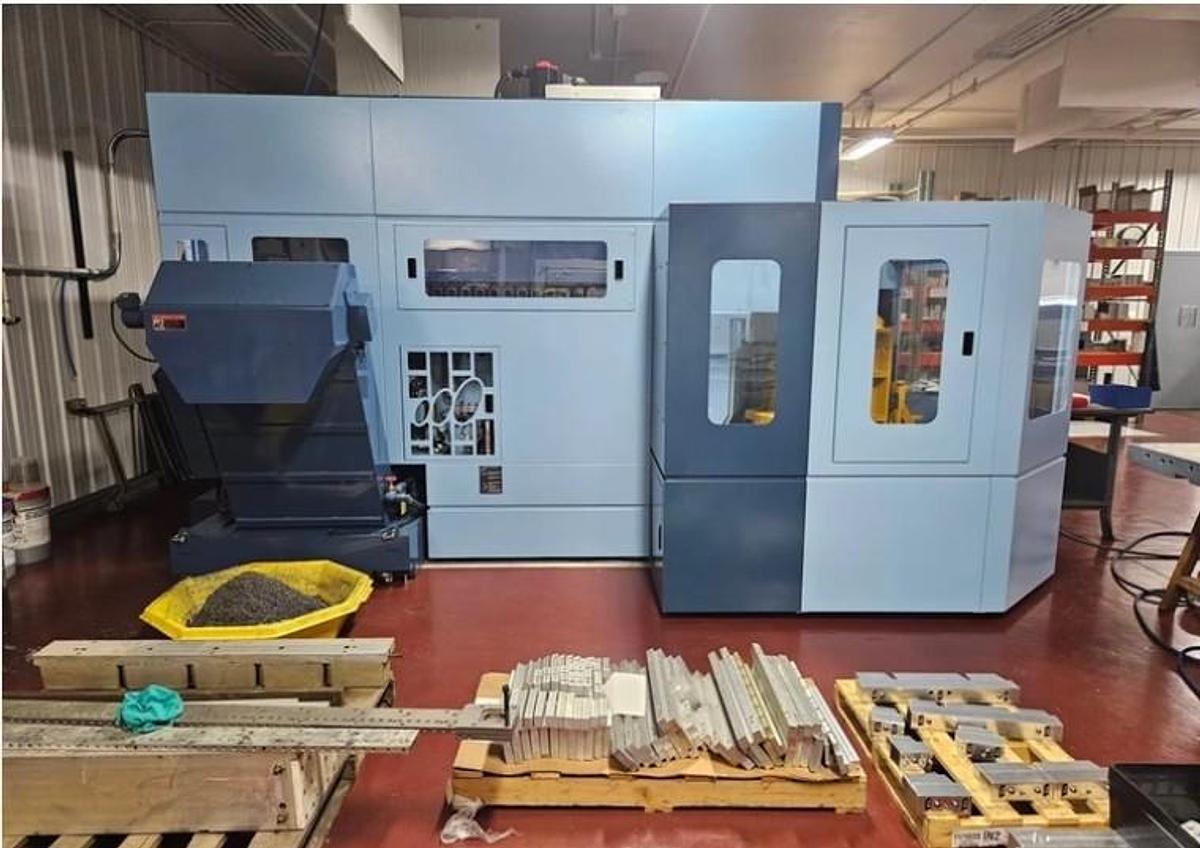

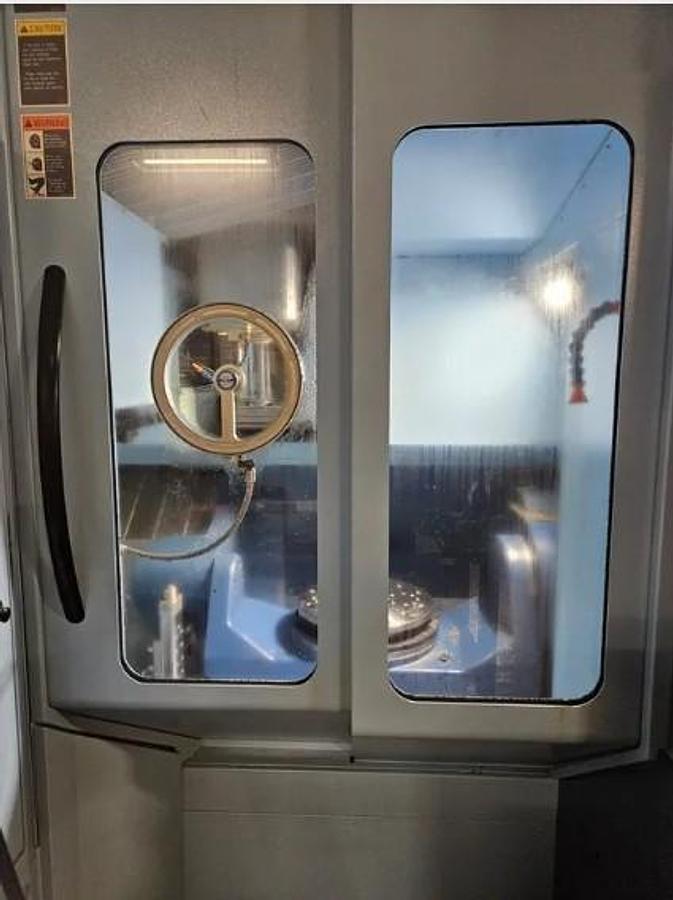

2022 Matsuura MX520-PC4 5 Axis Trunnion Style VMC w/ 4 Pallets, Probing, Coolant Thru Spindle and More!!
2022 Matsuura MX520-PC4 5 Axis Trunnion Style VMC w/ 4 Pallets, Probing, Coolant Thru Spindle and More!!
$467,500 (USD)
Location:Florida
Description

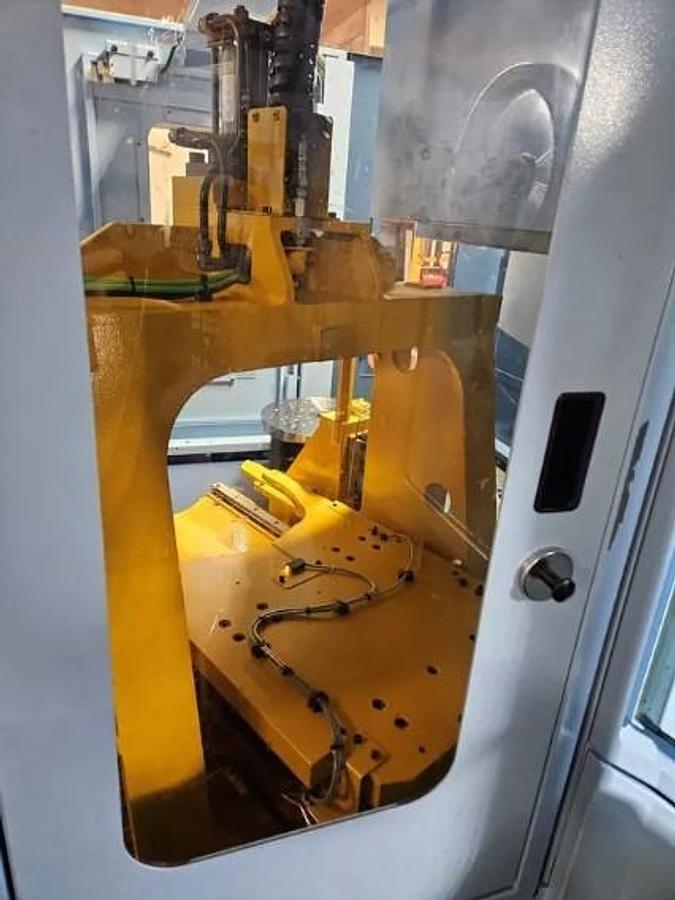

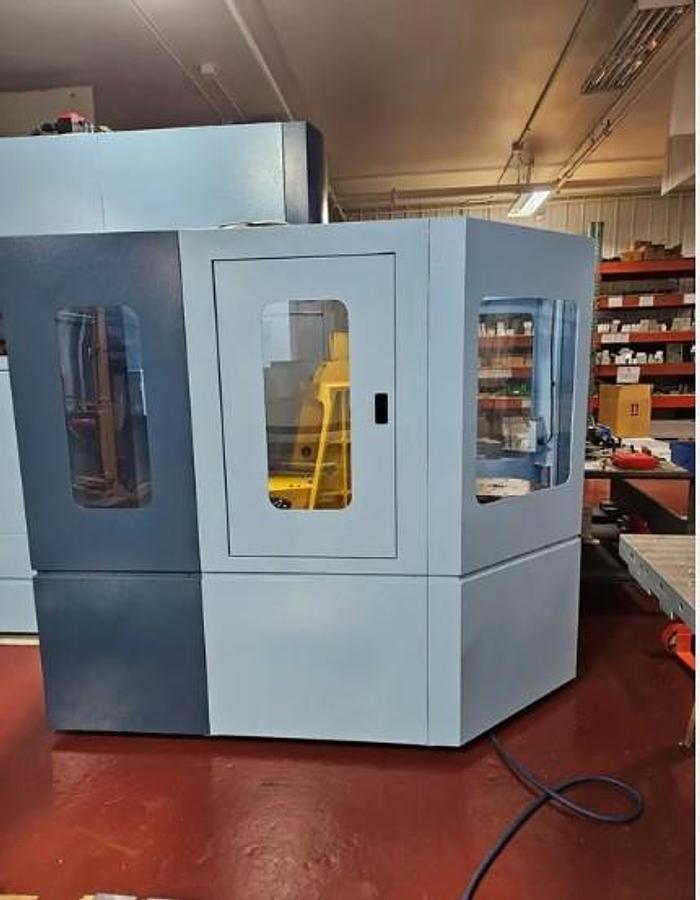

4 Pallet PC System

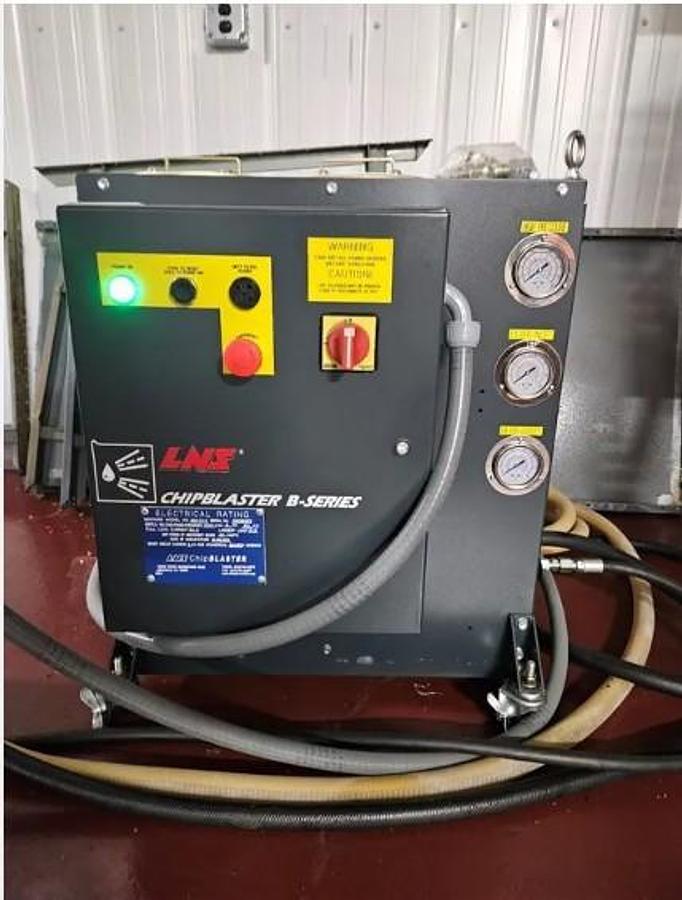

High Pressure Coolant thru the Spindle - 1000 PSI Chip Blaster M30
Renishaw OMP 400 Spindle Probe
Renishaw NC4 Laser Tool Setting Probe

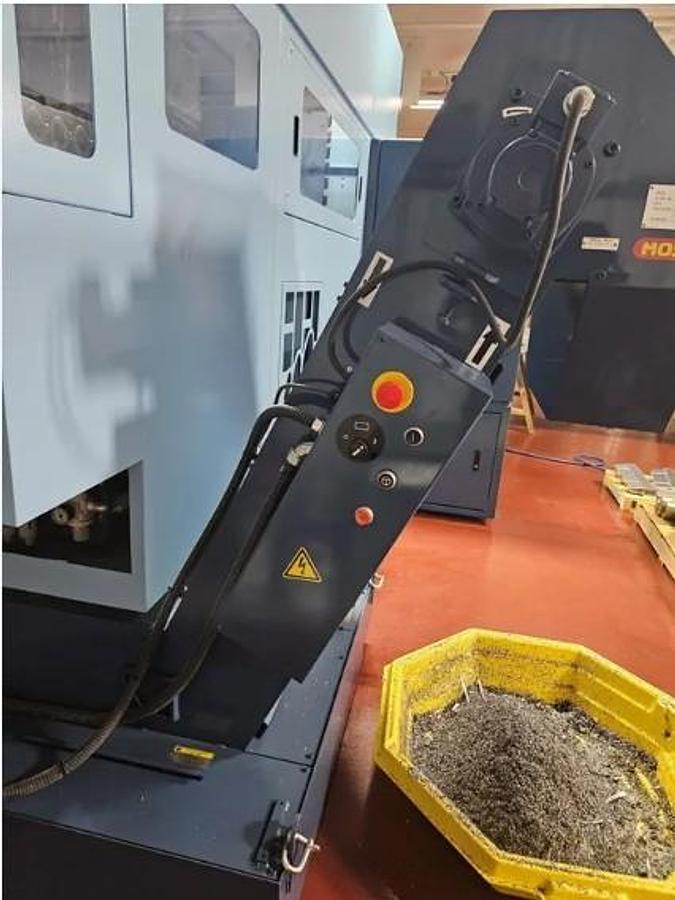

Chip Conveyor

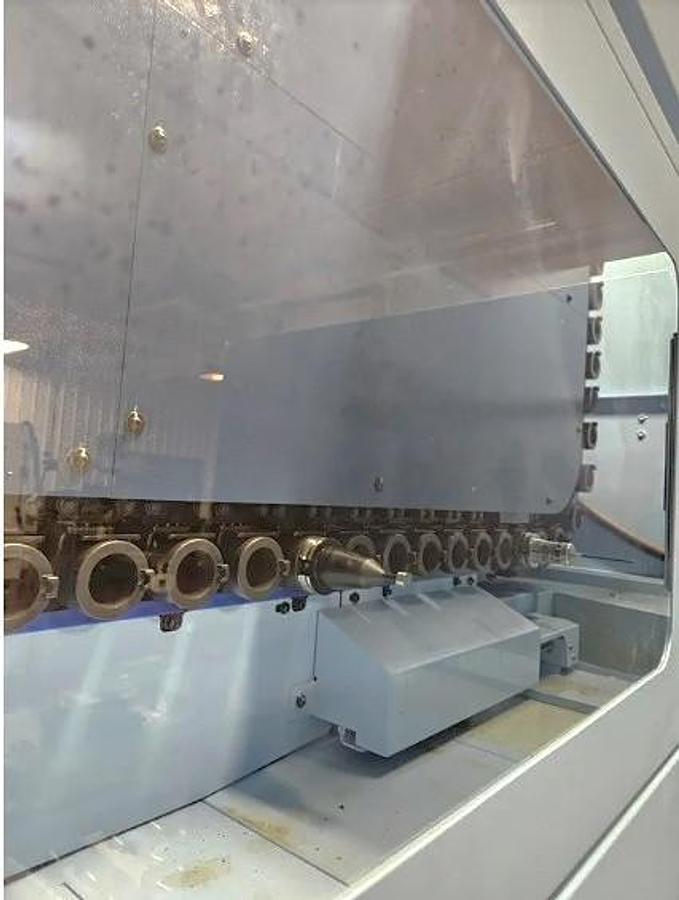

90 Station Tool Changer
X, Y, Z, A & B Scale Feedback System
Auger Style Internal Chip Conveyor
AD-TAP Function
Thermal Displacement Compensation
MMU Value Package High Speed Precision
5 Axis Package
High Speed Skip Nano Smoothing/Nano Smoothing 2
Optional Block Skip9
Data Server Package
8 MB Control Memory
Optimum Torque Accel/Decel
Coordinate Rotation
Tool Center Point Control
Tool Life Management
Look Ahead
Block Expansion to 1000 pcs.
Tool Offset 999 Pairs
Tilted Work Plane Command
Workpiece Coordinate System - 300 Sets
3 Dimensional Cutter Compensation
Number of Registered Programs - 1000 pcs.
Inverse Time Feed
Spindle Oil Chiller
ATC Auto Door
Rigid Tapping with AD-TAP Function
Spindle Overload Detection Function
Spindle Thermal Displacement Compensation System
Software Tool for Memory Card Program Operation & Editing MIMS
All Available Manuals

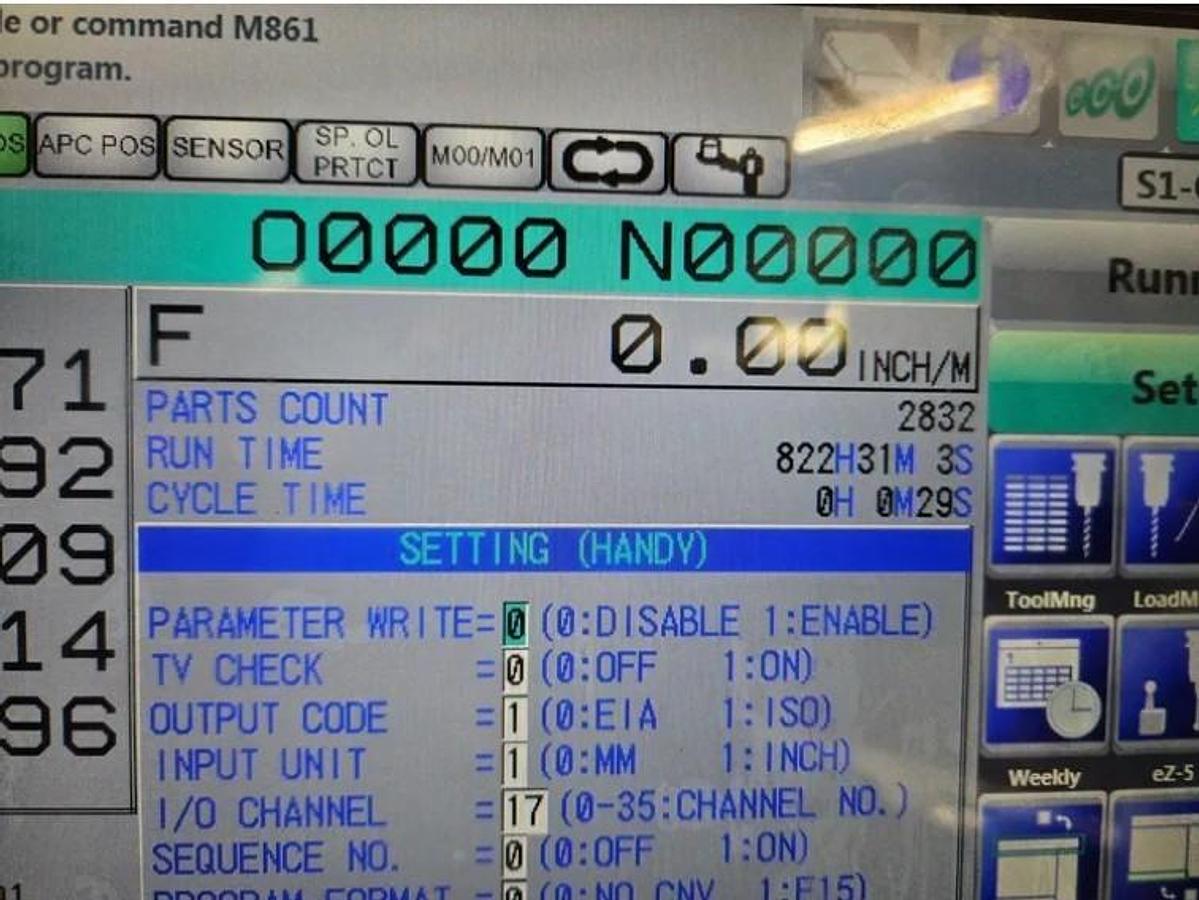

**RUN HOURS ONLY 822**
Specifications
| Manufacturer | Matsuura |
| Model | MX520-PC4 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120025 |

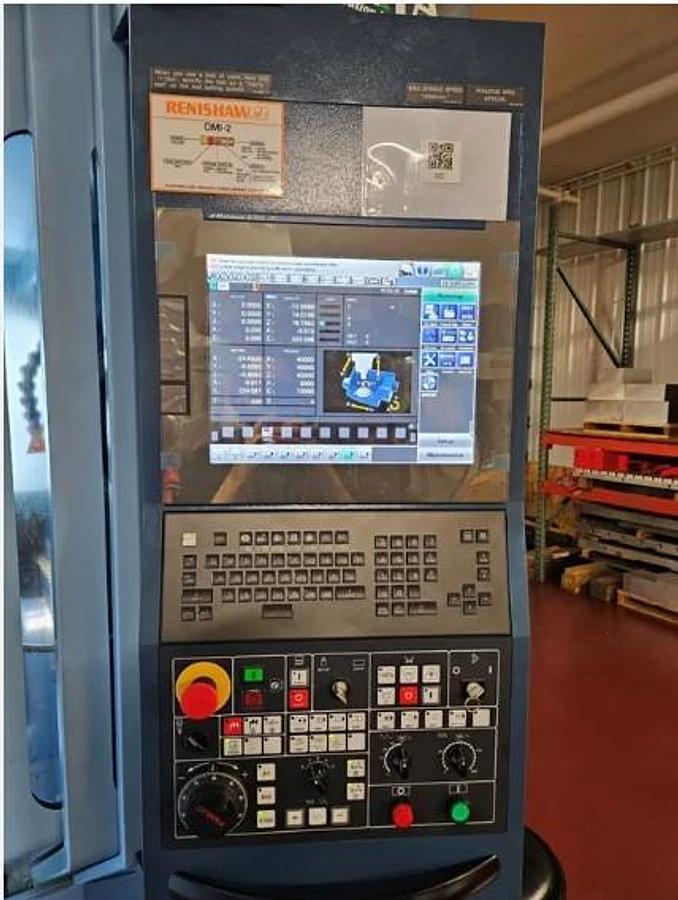

| Machine Control | Matsuura G-Tech 31ib5 Control |
| Table Size / Number of Pallets | 19.68" x 19.68" / 4 Pallet Changer |
| Max table load | 440 lbs |
| Maximum Workpiece Diameter / Height | 20.47" / 13.77" |
| Maximum Workpiece Diameter / Height (with restrictions) | 27.95" / 13.77" |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | 22.04" |
| Z-Axis Travel | 20.07" |

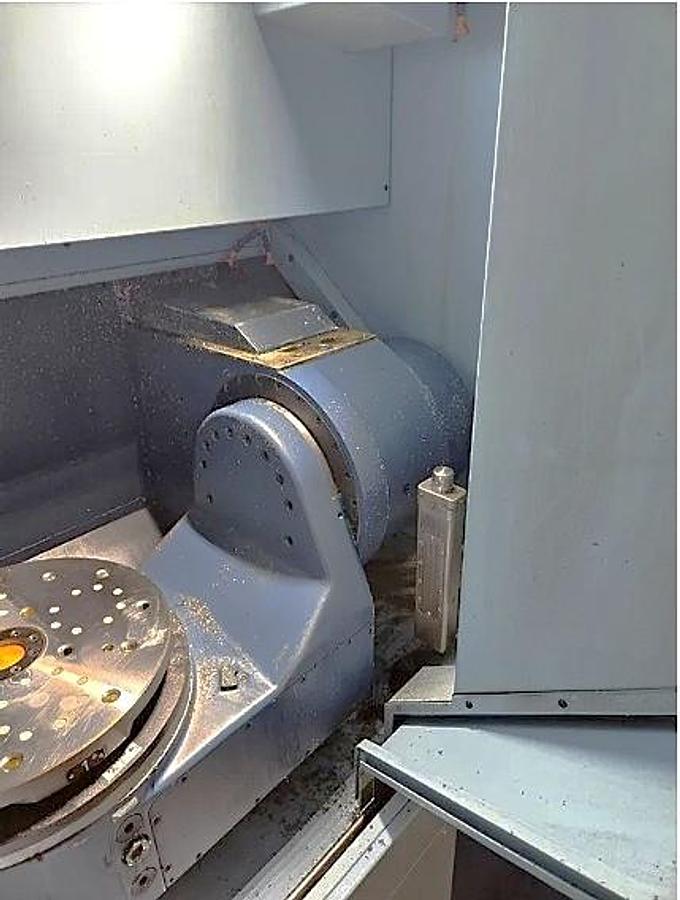

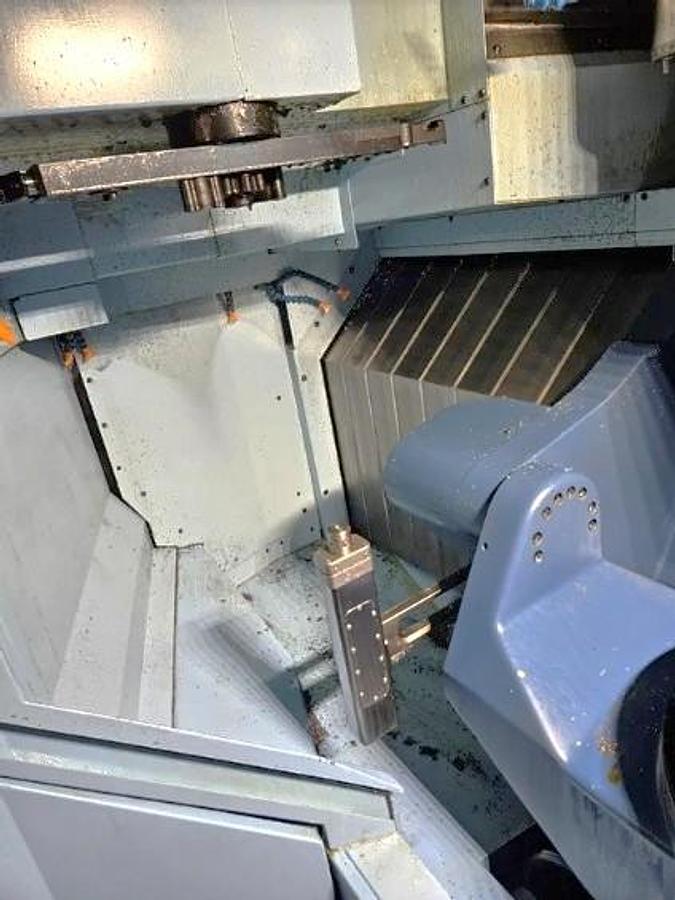

| A-Axis Trunnion Tilt | -125 Degrees to +10 Degrees |
| C-Axis Rotation | 360 Degrees |
| Spindle Taper | BT 40 |
| Spindle Speed | 40 - 12,000 RPM |
| Spindle Motor | not avail. |
| Tool Magazine Capacity | 90 Station Tool Changer |
| Rapid Traverse Rates | 1574 IPM |
| Maximum Tool Diameter / Length / Weight | 5.90" / 11.81" / 22 lbs |
| Machine Dimensions LxWxH | not avail. |
| Machine Weight | 20,833 lbs |
