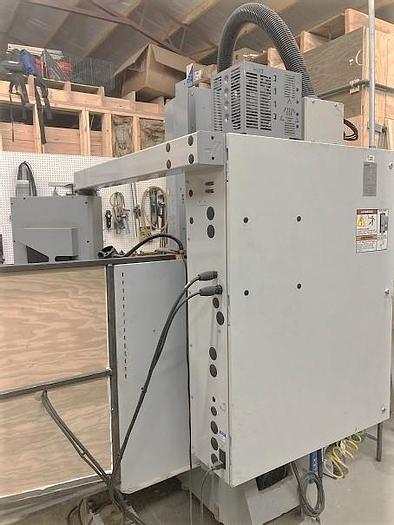

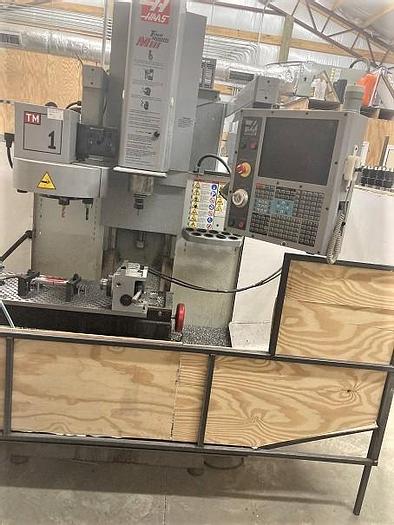

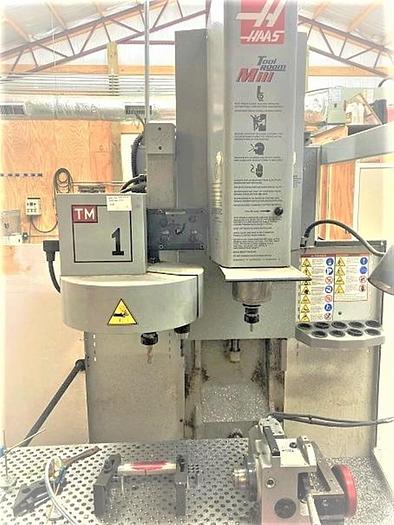

2008 Haas TM-1 32 BIT
Sold
2008 Haas TM-1 32 BIT
$22,500 (USD)
Location:Dundee, FL
Description

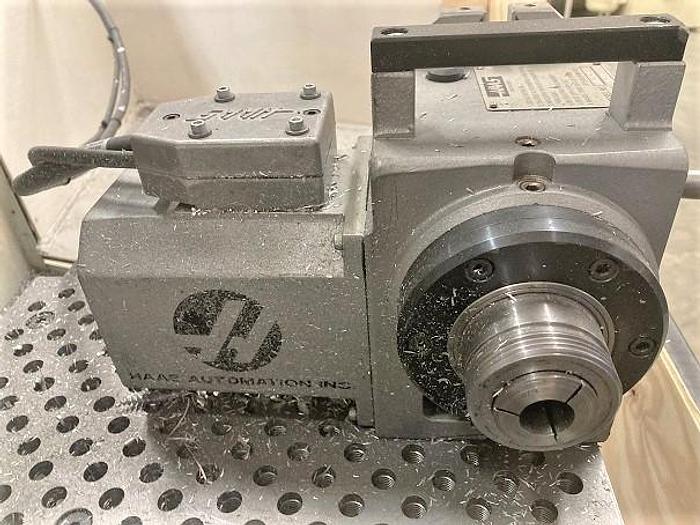

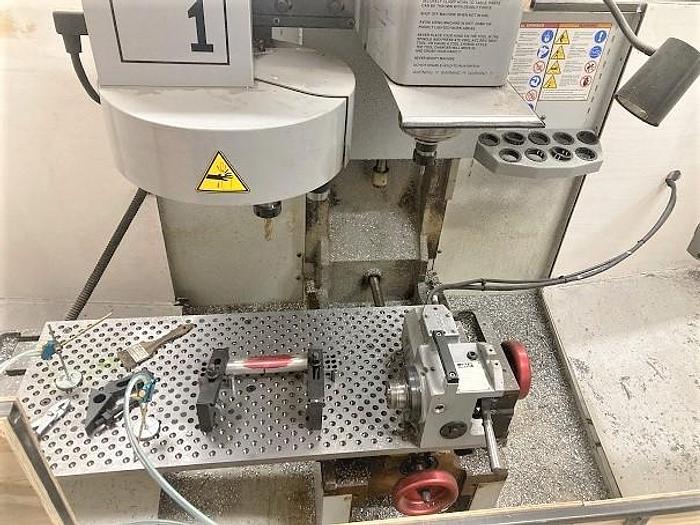

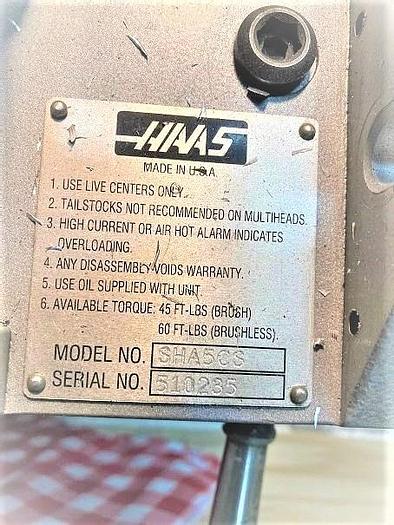

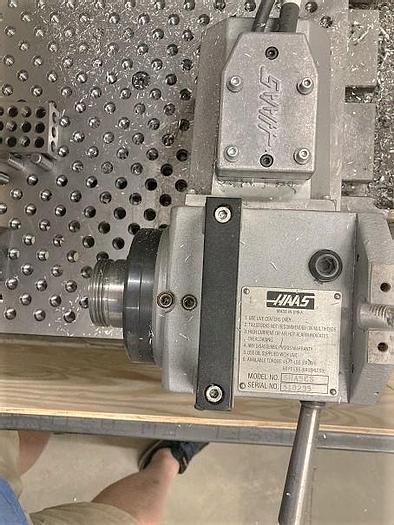

Haas HA5CS 4th Axis Collet Indexer Unit
6,000 RPM Spindle Option
10 Station Tool Changer
Coolant Pump Kit w Tank/Pump(though not used)
Current Owner doesn't do production and uses just a misting system
External High Voltage Transformer
USB Port Interface
Early Power Failure Detection Module

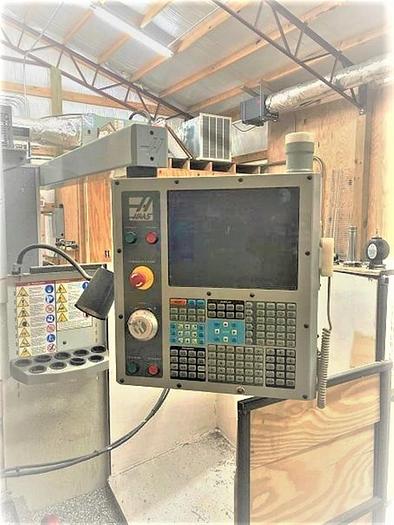

Visual Quick Code
Work Light
Vector Drive Spindle
RS-232 Port/DNC Link
Direct Belt Drive
Accepts 240V Single Ph or 208V Three Phase
Currently Running Single Phase
Haas Manual

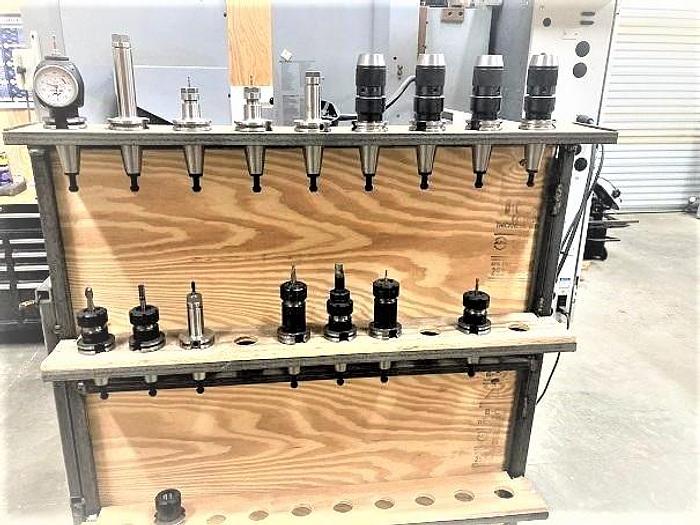

(19) CAT 40 Tool Holders
Leveling Pads
Home Made Machine Shrouding

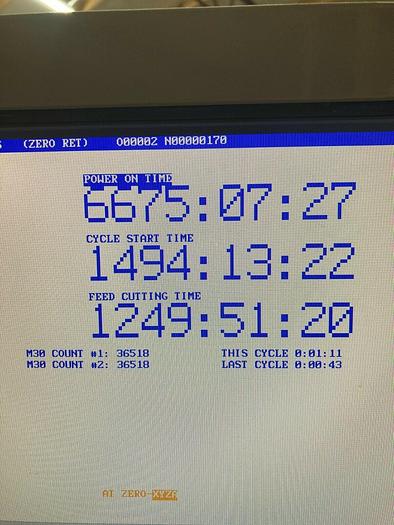

6675 Power On Hours
1494 Cycle Start Hours
1249 Feed Cutting Hours
Specifications
| Manufacturer | Haas |
| Model | TM-1 32 BIT |
| Year | 2008 |
| Condition | Used |
| Stock Number | 117250 |
| Table size | 47.75" x 10.5" |
| Table top to spindle nose | 4" - 20" |
| X-axis travel | 30" |
| Y-axis travel | 12" |
| Z-axis travel | 16" |
| Spindle taper | CAT # 40 |
| Spindle speed | 0 - 6,000 RPM |
| Spindle motor | 7.5 HP |
| Tool magazine capacity | 10 Station ATC |
| Max. tool diameter / weight | 3.5" / 12 lbs. |
| Rapid traverse rates | 200 IPM |
| Cutting feedrates | 200 IPM |
| Electrical requirements 3 ph/single ph | 208V / 240V |
| Machine dimensions | 85"x69"x109" |
| Machine weight | 4,000 lbs. |
