2005 Mazak Nexus QTN 350/1250
No longer available

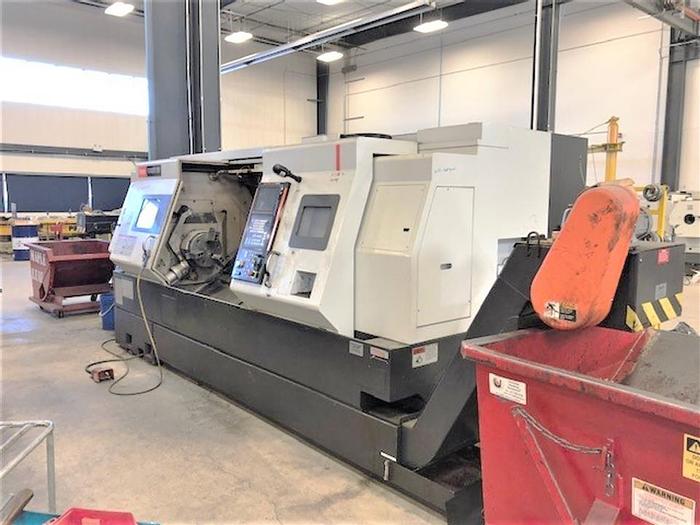

2005 Mazak Nexus QTN 350/1250
Location:Canada
Description
12" 3 Jaw Hydraulic Chuck Chip Conveyor Programmable Tailstock Programmable Tool Eye Chuck Open/Close Confirm Backround Tool Path Check RS 232 Port Interface 3.5" Floppy Disk Drive Interface Windows Based Operating System USB Port Interface Network Interface Multi Tap Transformer All Available Tooling All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350/1250 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 117030 |
| Machine Control | Mazatrol Fusion 640T Nexus |

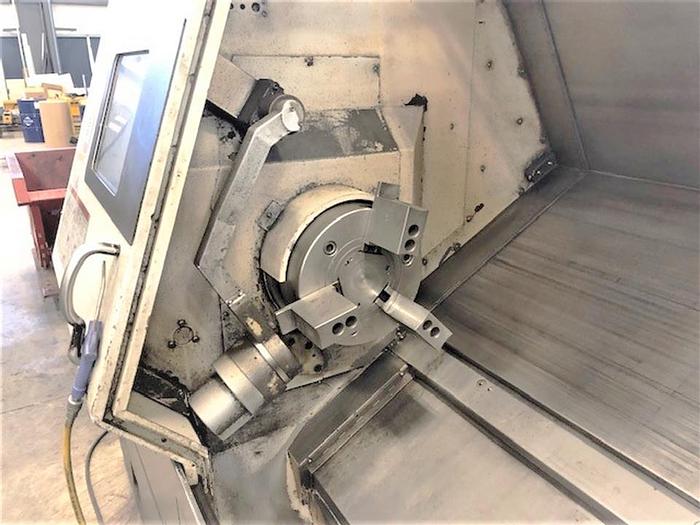

| Chuck size | 12" Hyd Chuck |
| Maximum swing | 26.77" |
| Maximum machining diameter | 16.54" |
| Maximum cutting length | 46.297" |
| X-axis travel | 10.63" |
| Z-axis travel | 49.03" |
| Spindle nose / spindle bore / bar cap. | A2-11" / 4.4" / 4.0" |
| Spindle speed | 3,300 RPM |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |

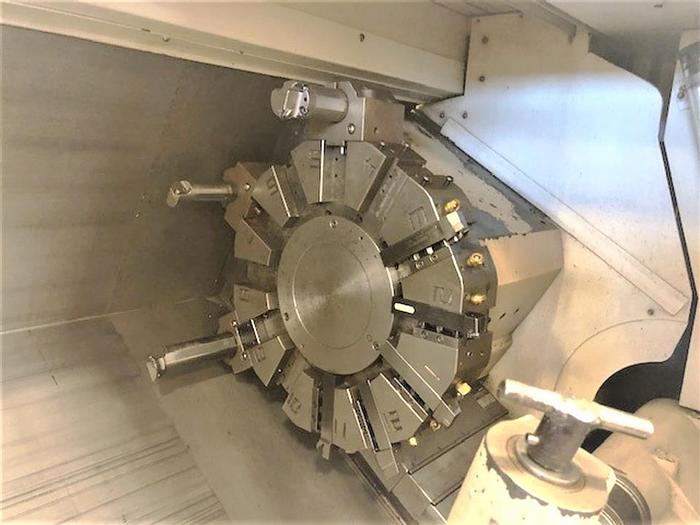

| Turret type | 12 Position Drum |
| Rapid traverse rates x / z | 1,181 IPM / 984 IPM |

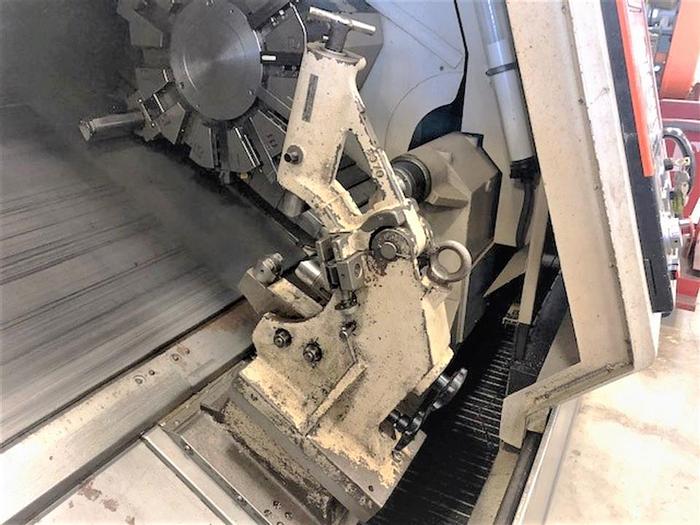

| Tailstock center / diameter | MT#4 / 3.94" |
| Tailstock body stroke | 37.8" |
| Machine dimensions lxwxh | 140" x 80" x 79" |
| Machine weight | 18.775 lbs |
