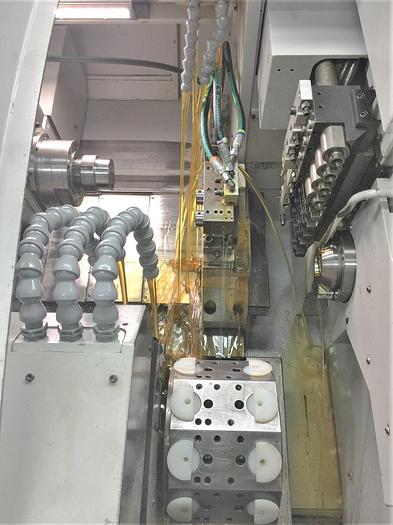

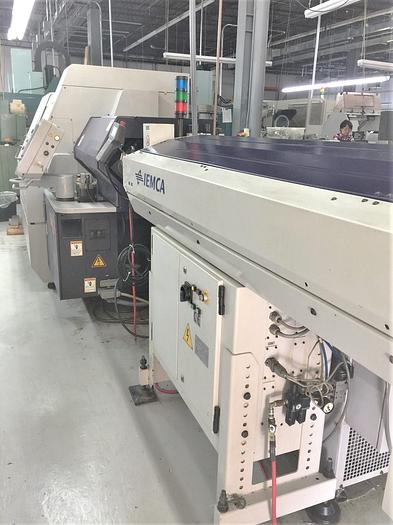

2004 Citizen M-32 Type V
Sold
2004 Citizen M-32 Type V
Location:Massachusetts
Description

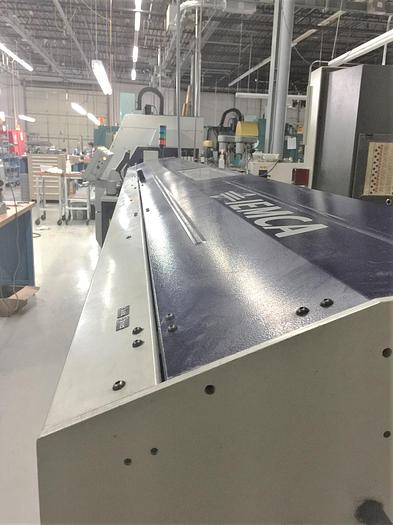

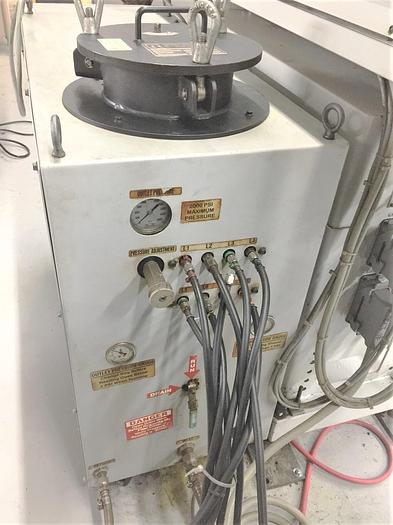

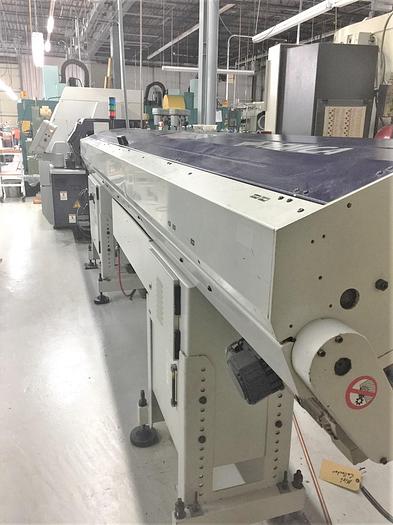

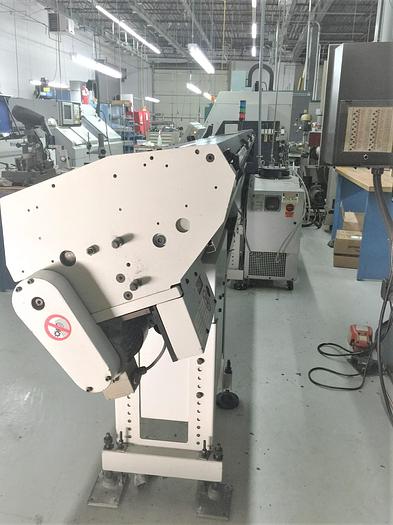

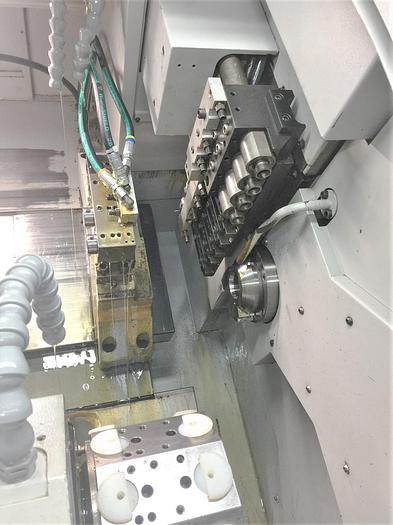

Y Axis on Turret C Axis on Main Spindle (.001) Subspindle with 1 Degree Index Live Milling and Drilling Capability Iemca Mini Boss 432/37 Bfd for 12' Bar Stock Chip Blaster Hi Pressure 8 Line Coolant System w/ Pump Chip Conveyor Parts Catcher 10 Station Turret w/ 1/2 Indexing for 20 Positions Gang Slide w/ Live Tooling Positions & Y Axis Backworking Capability from Gang & Turret Spindle Synchronization RS 232 Port Interface 3.5" Floppy Disk Interface 3 Color Machine Status Condition Lights Tooling includes as follow:
(2) Live Tools Type KSC 110
(2) Turning Holder ATF 119L
(2) Turning Holder BT-CTF 2019-750
(1) Boring Holder TH 2004
(1) Boring Holder CDF 101
(1) Tool Presetter TP100 / 2012 10 / SER #21001
Specifications
| Manufacturer | Citizen |
| Model | M-32 Type V |
| Year | 2004 |
| Condition | Used |
| Stock Number | 117151 |
| Quantity | 1 |

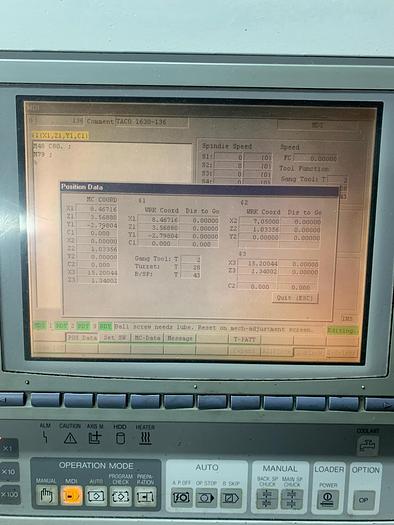

| Control | Citizen CNC Control |
| Maximum Machining Diameter | 1.25" |
| Maximum Machining Length | 12.59" |
| Backworking-Maximum Chucking Diameter | 1.25" |
| Backworking-Maximum Work Length | 5.8" |
| X1 Axis Travel / X2 Axis Travel | 0.75" / .075" |
| Y-Axis Travel | 1.0" |
| Z1 Axis Travel / Z2 Axis Travel | 4.92" / 12.6" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 Degree / 1 Degree |
| Spindle Speeds | 200 - 8,000 RPM |
| Rotary Tool Spindle Speeds | 200 - 5,000 RPM |
| Backworking Spindle Speeds | 180 - 7,000 RPM |
| Spindle Motor | 7.5 HP |
| Back Spindle Motor | 3 HP |
| Rotary Tool Motor - Turret | 2 HP |
| Rotary Tool Motor - Gang Plate | .5 HP |
| Backworking - Drilling/Tapping | M8 (.39") |
| Number of Tools - Turret | 10 Tools (20 in 1/2 index) |
| Number of Tools - Gang Style | 5 Turn / 3 Rotary |
| Number of Tools - Back Work Toolpost | 3 + Rear Facing Turret |
| Machine Dimensions | 110" x 50" x 69" |
| Machine Weight | 6,900 lbs. |
