1993 Fanuc Robocut Alpha 0A Wire EDM
Sold
1993 Fanuc Robocut Alpha 0A Wire EDM
Location:Massachusetts
Description

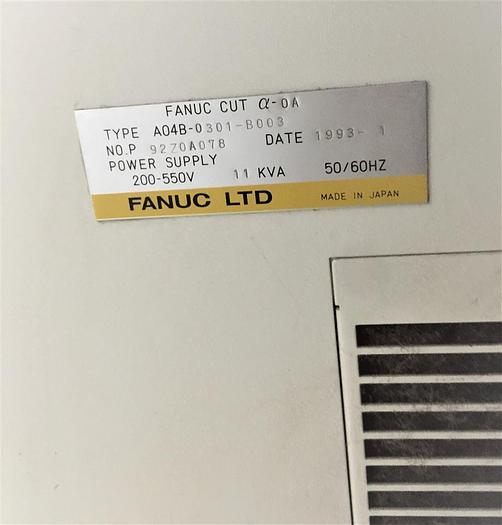

Filtering Flow Rate 40 L/Min Filtering 8 um Filter element is a cartridge paper filter Demineralizer: Ion Exchange resin Fl x1 Dimensions of tank 48"x49"x35" No Automatic Wire Threading No Submerged cutting Electrics 200-550V, 11 KvA, Currently Wired 220V / 3 Phase RS 232 Port Interface
*Machine is currently under power, but not being used**
Specifications
| Manufacturer | Fanuc |
| Model | Robocut Alpha 0A Wire EDM |
| Year | 1993 |
| Condition | Used |
| Stock Number | 93390 |

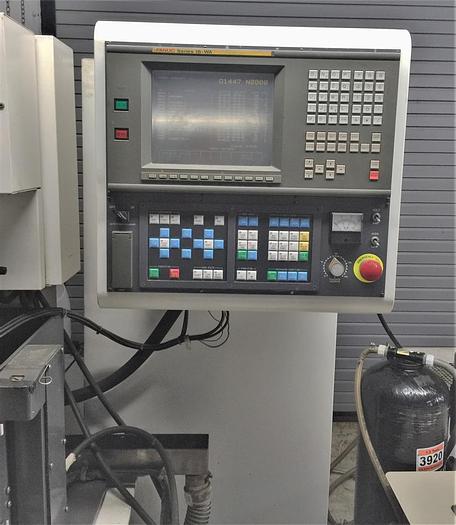

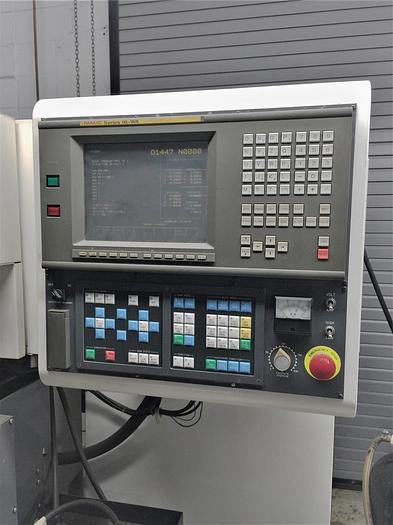

| Control | Fanuc 16WA |
| Maximum Dimension that can be Machined | 15.75" x 11.81" x 5.9" |
| Maximum Table Load | 551 lbs. |
| X-Axis Travel | 11.81" |
| Y-Axis Travel | 7.87" |
| Z-Axis Travel | 7.09" |
| Maximum Table Feedrate | 35.43 IPM |
| Wire Diameter | .0039" - .0118" |
| Wire Feedrate | 0 - 393.7 IPM |
| Maximum Tank Capacity | 68 Gallons |
| Machine Dimensions | 75" x 63" x 69" |
| Machine Weight | 3,086 lbs. |
