1999 Haas VF2B
Sold
1999 Haas VF2B
$17,500 (USD)
Location:Delaware
Description

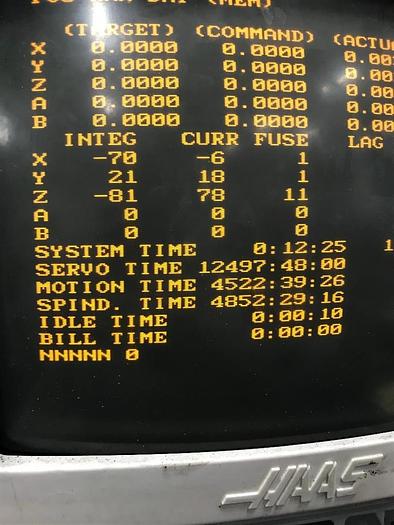

4th Axis Wired 2 Speed Geared Transmission Auger Style Chip Conveyor Programmable Coolant Nozzle Visual Quick Code Programming 1 MB Program Memory RS 232 Port Interface USB Port Interface Complete Coolant System with Tank & Pump Rigid Tapping Wired 208/230 Voltage Electrics All Available Manuals Status Condition Lightpost Servo On Hours 12,497 Motion Hours - 4,522 Spindle Hours - 4,852 Used to cut primarily aluminum, brass and bronze
Specifications
| Manufacturer | Haas |
| Model | VF2B |
| Year | 1999 |
| Condition | Used |
| Stock Number | 116589 |
| Quantity | 1 |
| Control | Haas 32 BIT |
| Table Size | 36"x14" |
| Maximum Table Load | 1,000 lbs |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Speed | 7,500 rpm |
| Spindle Taper | CAT 40 |
| Spindle Motor | 20 hp |
| Tool Magazine Capacity | 20 atc |
| Rapid Traverse Rates | 710 ipm |
| Distance Spindle Nose to Table Top | 4" to 24" |
| Maximum Tool Diameter / Length / Weight | 3.5"/ NA / 12 lbs |
| Machine Dimensions LxWxH | 88"x92.5"x100" |
| Machine Weight | 8,000 lbs |
