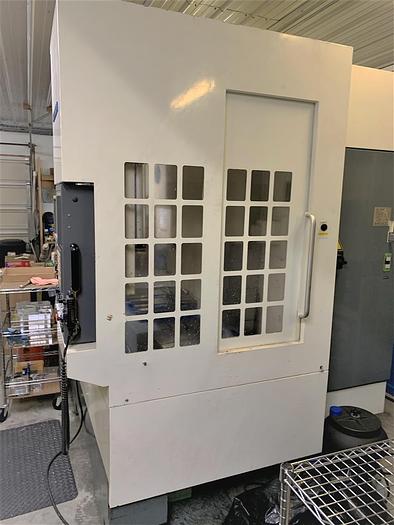

2007 Kitamura Mycenter 1XiF High Speed VMC
![Used 2007 Kitamura Mycenter 1XiF](https://i.machineryhost.com/a5771bce93e200c36f7cd9dfd0e5deaa/a965b2da6c46a35d8273d5fecf455b9c/large-used-2007-kitamura-mycenter-1-xi-f.jpg)
No longer available
2007 Kitamura Mycenter 1XiF High Speed VMC
$9,900 (USD)
Location:New Jersey
Description

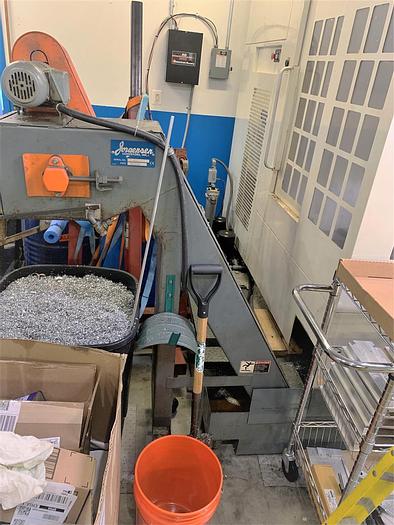

30 Station Fast Side Mounted Tool Changer Coolant Through the Spindle - 131 PSI 15,000 RPM Spindle Chip Conveyor Dual Chip Augers Remote Jog Handle Spindle Chiller Unit Wash Down Coolant Flood Coolant Rigid Tapping RS 232 Port Interface 3.5" Floppy Disk Interface Ethernet Ready Solid Boxed Ways Oil Cooled Ballscrews Wired 200/220V Electrics New Spindle Amplifier Installed in 2019 Spindle Rebuilt with new Bearings in 2017 All Available Manuals Primarily Runs Aluminum
**Cutting Hours 14,557**
Specifications

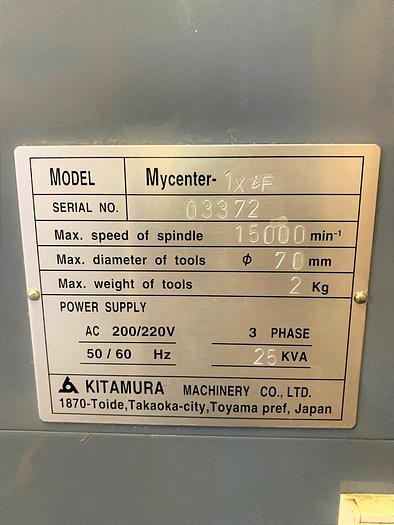

Manufacturer | Kitamura |
Model | Mycenter 1XiF |
Year | 2007 |
Condition | Used |
Stock Number | 115985 |
Control | Fanuc 16i-MB |
Table Size | 24.01" x 12.4" |
Table Load Capacity | 221 lbs. |
X-Axis Travel | 20" |
Y-Axis Travel | 14" |
Z-Axis Travel | 18.1" |
Spindle Taper | BT #30 |
Spindle Speeds | 150 - 15,000 |
Spindle Motor | 10 HP |
Spindle Nose to Table Top | 2.3" - 20.4" |
Tool Magazine Capacity | 30 Station Side Mounted ATC |
Tool Change Time Tool to Tool | .7 Seconds |
Rapid Traverse Rates X, Y / Z | 1969 IPM / 1417 IPM |
Cutting Feedrates | 1417 IPM |
Machine Dimensions | 98" x 97.2" x 117.4" |
Machine Weight | 10,500 lbs. |
