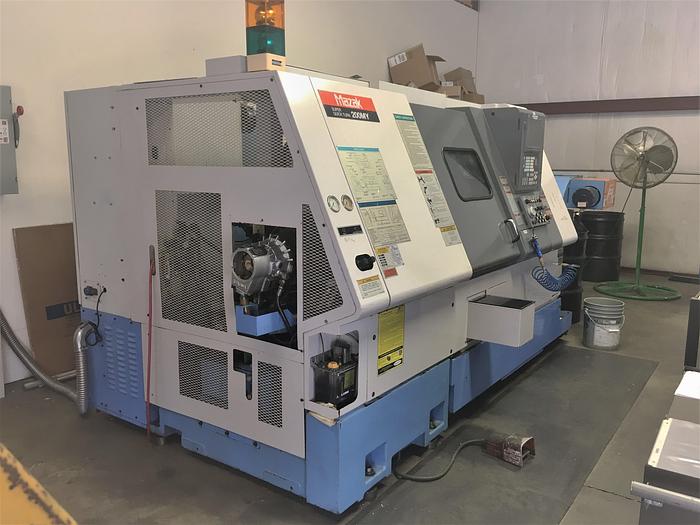

2003 Mazak SQT200MY
2003 Mazak SQT200MY
$42,500 (USD)
Location:Dundee, FL
Description

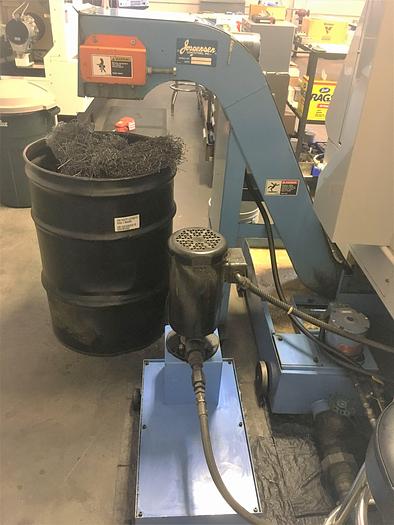

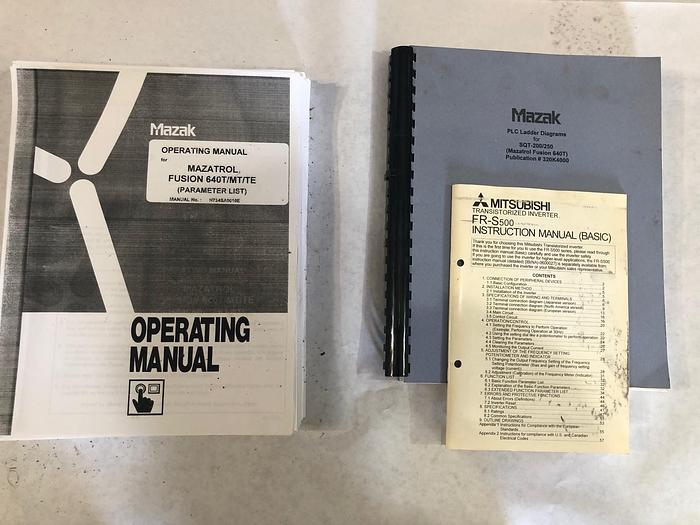

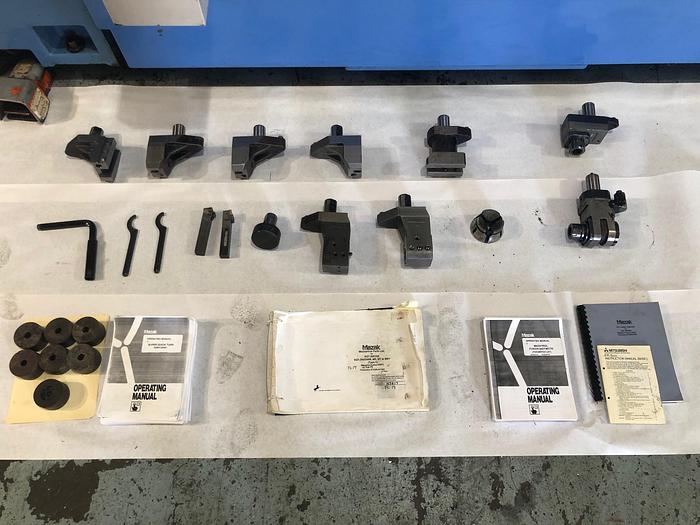

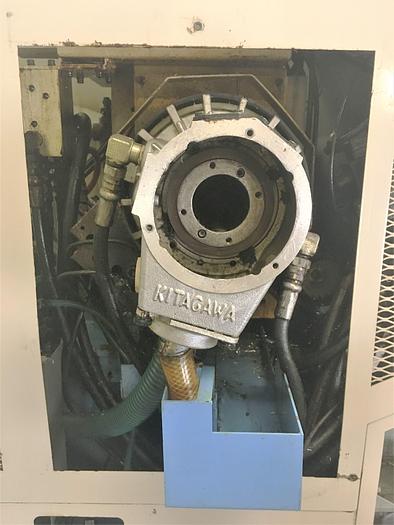

Y Axis Capability (For Off Centerline Work) Full C Axis Spindle Rotation Live Milling / Drilling Capability Automatic Parts Catcher Chip Conveyor Barfeed Interface 8" 3 Jaw Kitagawa Hydraulic Chuck Microcentric Collet Chuck Automatic Tool Eye Tailstock with Programmable Quill Background Tool Path Check Mill Spindle Synchronous Tapping RS 232 Port Interface 3.5" Floppy Disk Drive Interface Memory Card Interface EIA/ISO Input Function Multi Tap Transformer 3 Color Signal Tower Lights (3) Boring Bar Holders (4) Turning Holders (1) Facing Holder (2) Axial Live Tool Holders (1) Radial Live Tool Holder (1) Tool Location Plug Micellaneous Stick Tools, Collet, Wrenches Leveling Pads Operations Manual for Machine Operations Manual for Control Parts Manual PLC Ladder Diagram Manual Manufactured New in December 2003
Specifications
| Manufacturer | Mazak |
| Model | SQT200MY |
| Year | 2003 |
| Condition | Used |
| Stock Number | 116906 |
| Quantity | 1 |

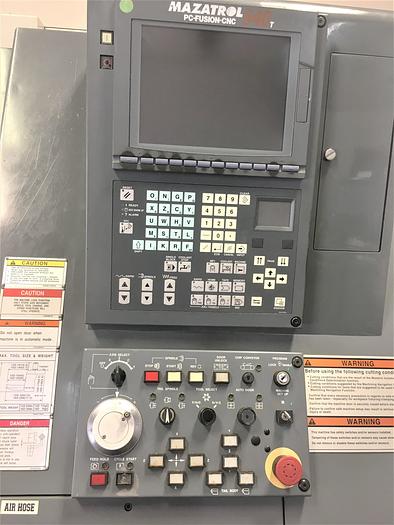

| Control | Mazatrol Fusion 640T |
| Chuck Size | 8" Hydraulic & Collet Chuck |
| Maximum Swing over Bed | 20.67" |
| Maximum Swing Over Cross Slide | 13.78" |
| Maximum Machining Diameter | 11.81" |
| Maximum Machining Length | 21.30" |
| Maximum Bar Capacity | 2.01" |
| X-Axis Travel | 7.09" |
| Y-Axis Travel | 3.94" (+/- 1.97") |
| Z-Axis Travel | 22.64" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.4" |
| Spindle Speeds | 35 - 5,000 RPM |
| Spindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 5 HP |

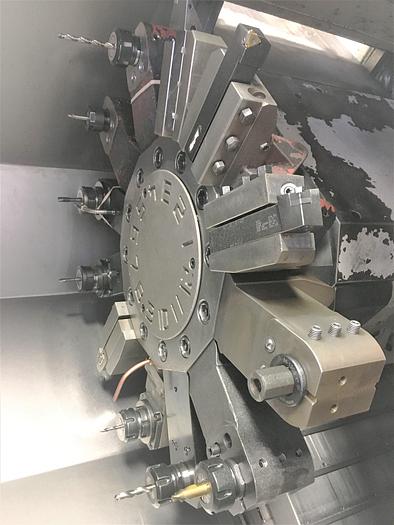

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X, Z / Y / C | 1181 IPM / 472 IPM / 400 RPM |
| Tailstock Taper / Quill Diameter | MT #5 / 3.15" |
| Tailstock Body Travel / Quill Travel | 15.75" / 5.91" |
| Machine Dimensions | 119" x 71" x 78" |
| Machine Weight | 12,321 lbs. |
