1996 Mazak Slant Turn 50N/2000
Sold
1996 Mazak Slant Turn 50N/2000
$29,500 (USD)
Location:North Carolina
Description
80" Center Distance 15" 3 Jaw Forkhardt Hydraulic Chuck Programmable Tailstock Chip Conveyor Prepped for Steady Rest w/ Mount RS 232 Port Interface Slant Bed Design Heavy Duty Boxed Ways on Both Axis' 3 Speed Gearbox Wired 200V Electrics All Available Tooling All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | Slant Turn 50N/2000 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 117015 |

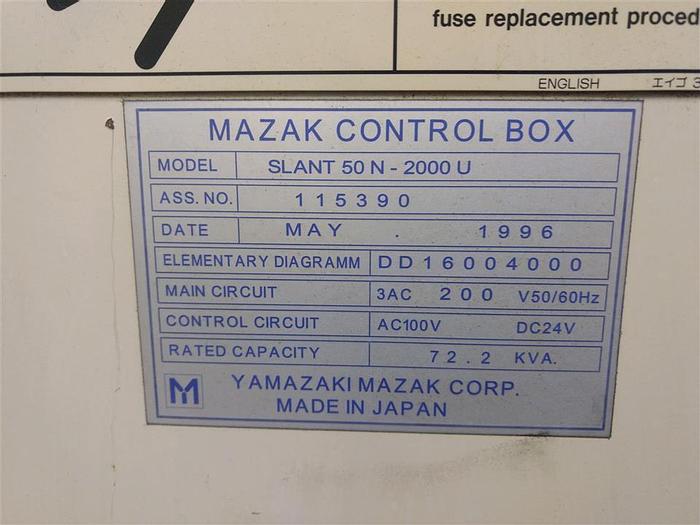

| Control | Mazatrol T-Plus |

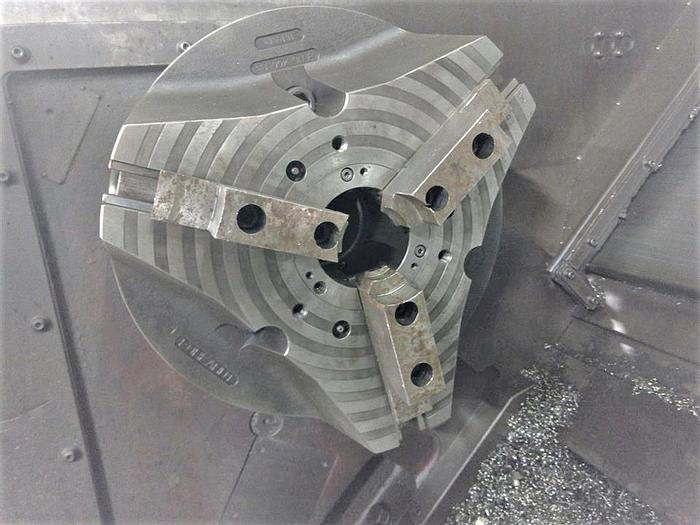

| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 31.7" |
| Maximum Cutting Diameter | 26" |
| Maximum Distance Between Centers | 82" |
| Maximum Bar Capacity | 3.5" |
| X-Axis Travel | 22.6" |
| Z-Axis Travel | 80" |
| Spindle Nose / Spindle Bore | A1-11" / 4.09" |
| Spindle Speeds | 4 - 1,600 RPM - 3 Ranges |
| Spindle Motor 30 Minutes/Continuous | 50 HP / 40 HP |

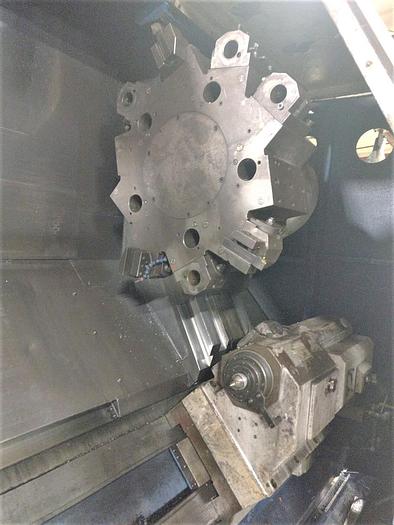

| Number of Turret Positions | 15 Station Turret |
| Rapid Traverse Rates X/Z | 475 IPM / 551 IPM |
| Tailstock Quill Diameter / Center | 5.9" / MT #5 |
| Machine Dimensions | 290" x 142" x 107" |
| Machine Weight | 33,510 lbs. |
