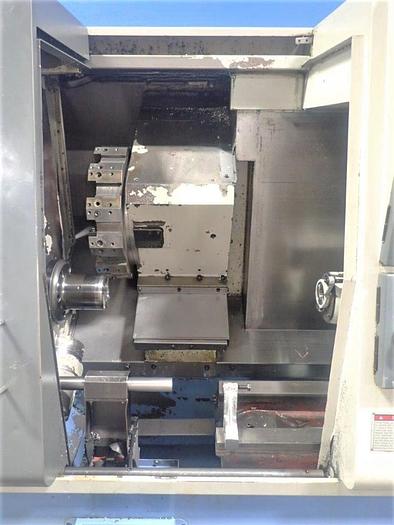

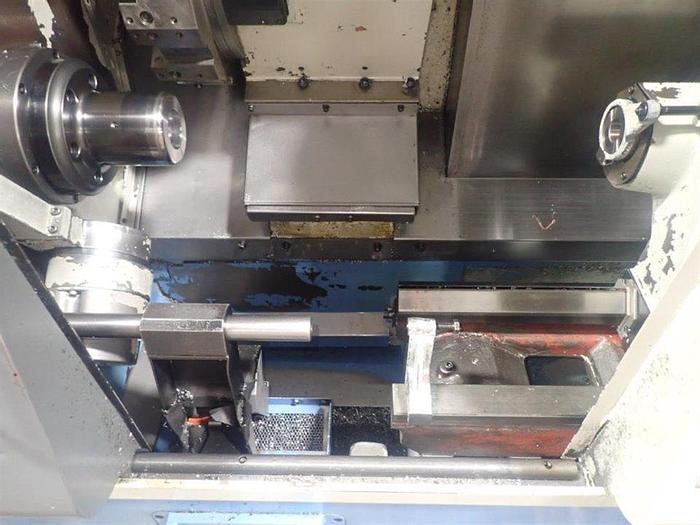

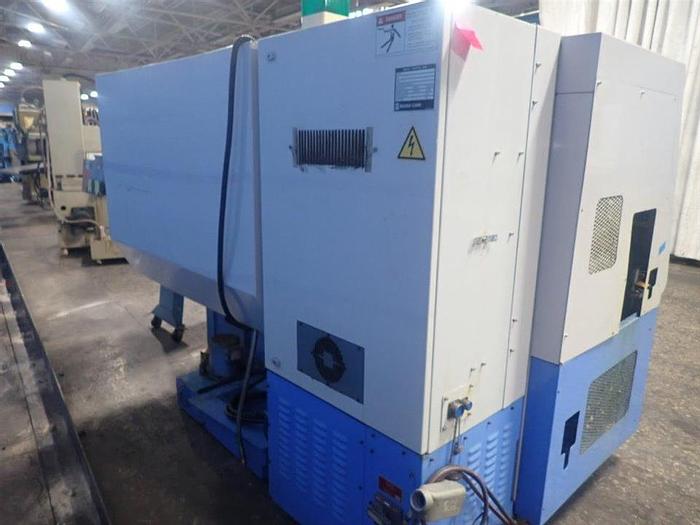

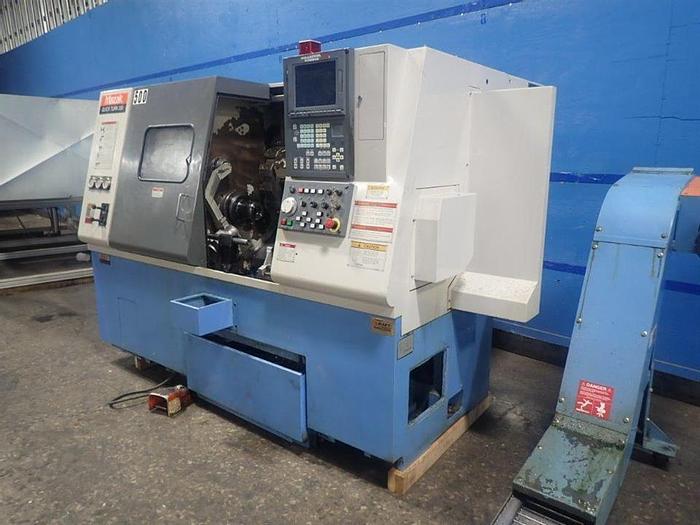

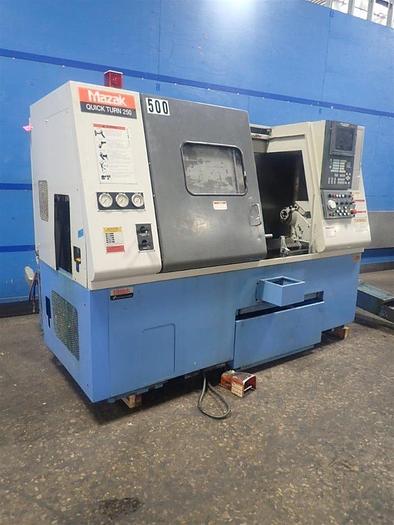

2001 Mazak QT250
No longer available
2001 Mazak QT250
$24,500 (USD)
Location:Dundee, FL
Description
Collet Chuck (8" 3-Jaw Hydraulic is avaiable) Automatic Tool Eye Parts Catcher Chip Conveyor Programmable Tailstock RS-232C Port for DNC Interface PCMCIA Interface (2 Slots) IC Memory Card Interface Hydraulic Pressure Interlock Machining Navigation Display Operating Status Mngmt. Background Toolpath Check Multi Tap Transformer Door Interlock All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT250 |
| Year | 2001 |
| Condition | Used |
| Stock Number | 117339 |
| Quantity | 1 |
| Control | Mazatrol Fusion 640T |
| Chuck Size | Collet |
| Maximum Swing | 23.6" |
| Maximum Cutting Diameter | 15.7" |
| Maximum Machining Length | 19.7" |
| Maximum Bar Capacity | 2.00" |
| X-Axis Travel | 8.5" |
| Z-Axis Travel | 20.1" |

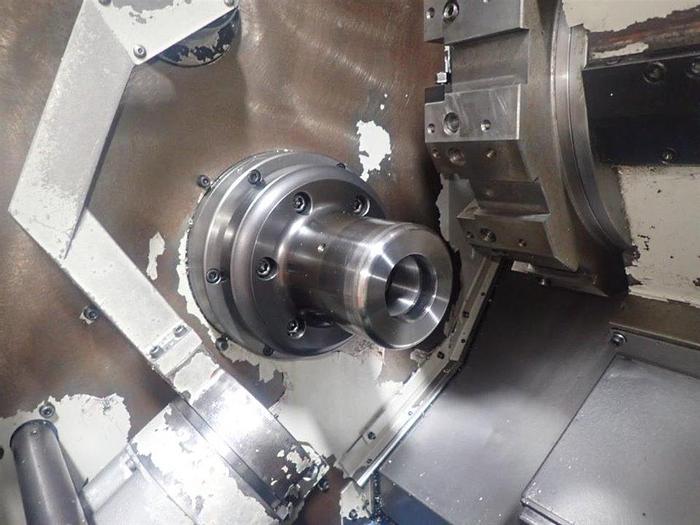

| Spindle Nose / Spindle Bore | A2-6" / 2.44" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 20 HP |

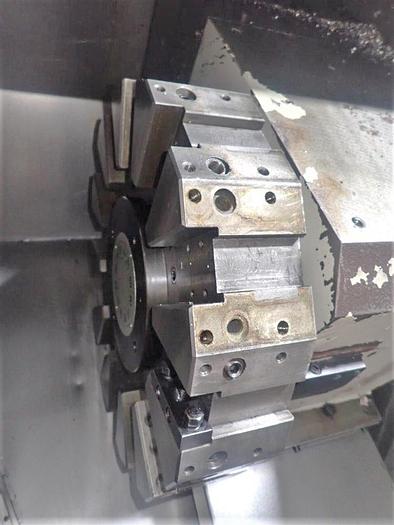

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 1200 IPM / 1300 IPM |

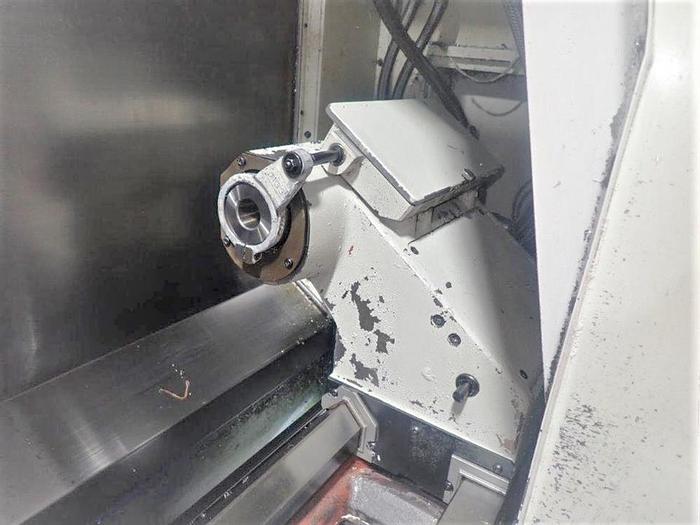

| Tailstock Body Travel / Quill Travel | 18.1" / 5.1" |
| Tailstock Bore Taper | MT #4 |
| Machine Dimensions | 107" x 63.8" x 67" |
| Machine Weight | 9,900 lbs. |
