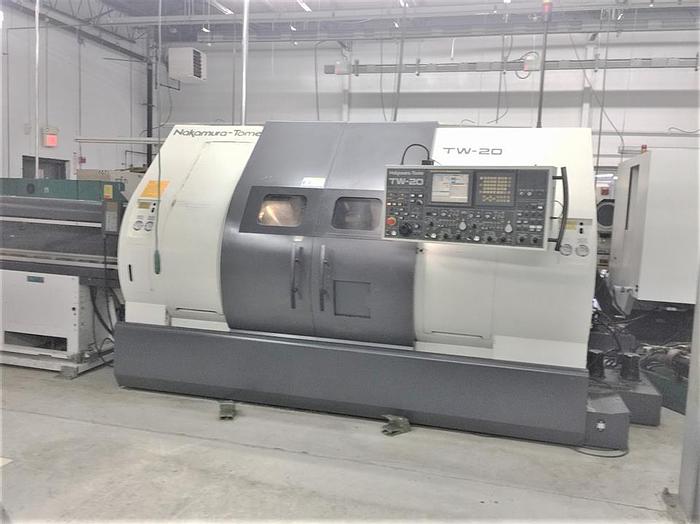

2008 Nakamura Tome TW-20MM
Sold
2008 Nakamura Tome TW-20MM
Location:Massachusetts
Description

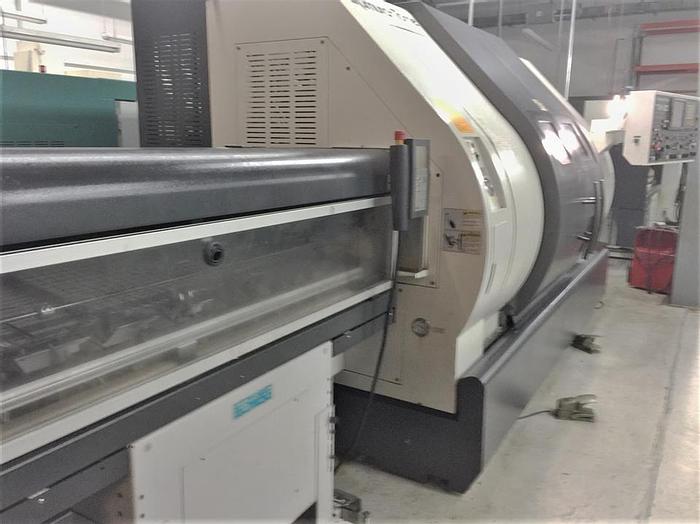

Twin Facing Spindle Design Full "C" Axis Spindle Rotation Both Spindle Live Milling / Drilling Capability on Both Turrets ATS 16C Collet Chuck - Both Spindles Barfeed Interface LNS Servo S3 Short Bar Feed Unit 2.5" Bar Capacity Option on Left Spindle High Pressure Coolant Pump - Both Sides Coolant Tank with Pumps Card Interface RS232 Port Interface (2) Live Tool Holders (5) Boring Bar Holders (8) Turning Holders
Specifications
| Manufacturer | Nakamura Tome |
| Model | TW-20MM |
| Year | 2008 |
| Condition | Used |
| Stock Number | 116697 |

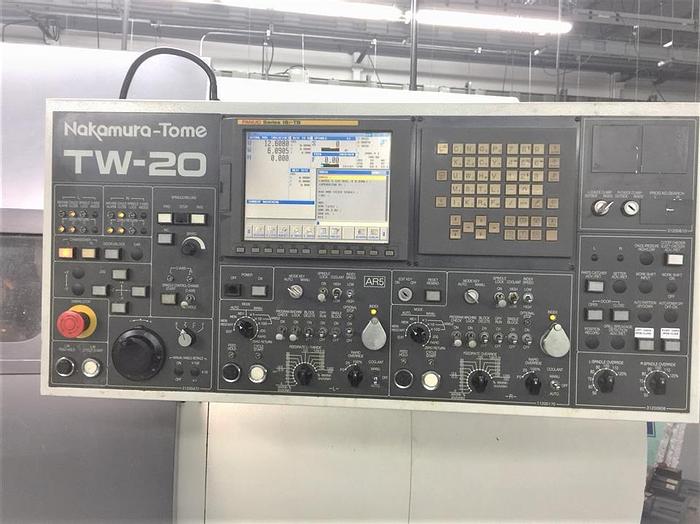

| Control | Fanuc 18i-TB |
| Chuck Type Left / Right Spindle | ATS 16C Collet / ATS 16C Collet |
| Maximum Swing Bed Left / Right | 10.63" / 8.46" |
| Maximum Turning Diameter | 10.63" |
| Maximum Turning Length | 7.56" |
| Distance Between Spindles | 42.52" |
| Maximum Bar Capacity Left Side / Right Side | 2.5" / 2.0" |
| X-Axis Travel (Both Sides) | 7.68" |
| Z-Axis Travel (Left / Right) | 10.43" / 30.71" |
| C Axis Spindle Rotation - Both | .001 Degree |
| Spindle Nose / Spindle Bore Left / Right | A2-6" / 3.15" / 2.56" |
| Spindle Speed Left / Right | 4,500 RPM / 5,000 RPM |
| Spindle Motor - Both 30 minutes/continuous | 20 HP / 15 HP |
| Rotary Tool Speed / Rotary Motor | 3,600 RPM / 5 HP |
| Number of Turret Positions - Both | 12 Station each |
| Rapid Traverse Rates X / Z | 630 IPM / 1181 IPM |
| Machine Dimensions | 137" x 83" x 85" |
| Machine weight | 17,160 lbs. |
