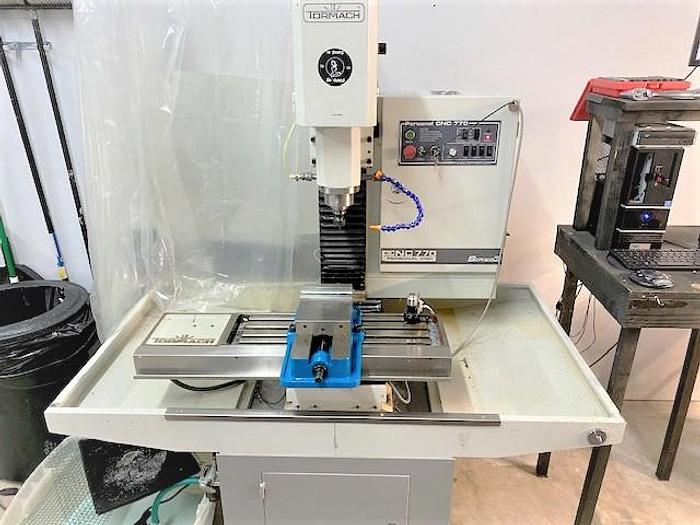

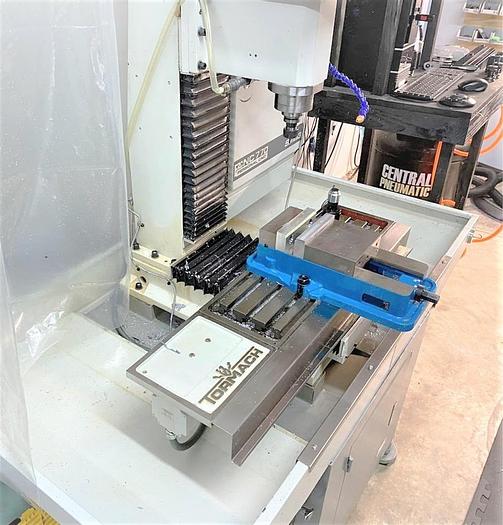

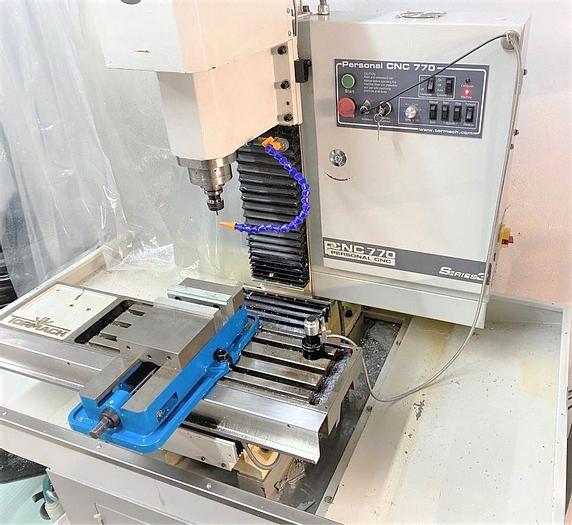

2017 Tormach PCNC 770
2017 Tormach PCNC 770
$9,950 (USD)
Location:Louisiana
Description
Series 3 Model Configuration Upgraded Coolant Syst. w/ Stand Alone Pump Includes (9) Tool Holders Haimer Digital Tool Height Gauge Tool Presetter (1) 5" Tormach Vice (1) 6" Vice Computer with Monitor and Keyboard Jog Wheel Stand with Work Cabinet Below Compact Footprint Design Single Phase Power Requirement Cast Iron Frame Direct Drive Anti Backlash Ballscrews Precision Micro Stepping Drive System High Performance Poly Phase Motors Hand Scraped Hydrodynamic Ways Tapered Adjustment Gibs Low Friction PTFE-Filled Acetyl Bonded Sliding Way Surface Ground P4 Ball Screw w/ Double Ball Nut Spindle Lock Out Key Coolant On/Off/Auto DIN Access. Port for Touch Probe/Toolsetter Prewired for 4th Axis Pre Configured for Electronic Handwheel Owners Manual Wired 115V AC +/- 10% New in Apriil 2017 Excellent Condition, Cleaned Weekly
Specifications
| Manufacturer | Tormach |
| Model | PCNC 770 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 117249 |
| Quantity | 1 |
| Control | Tormach |
| Table Size | 26" x 8" |
| Maximum Weight on Table | 400 lbs. |
| Table T Slots Number / Size | 3 Slots / 5/8" |
| X-axis travel | 13" |
| Y-Axis Travel | 7.5" |
| Z-Axis Travel | 13.25" |
| Spindle Taper | R8 |
| Spindle Speed | 175 - 10,000 RPM |
| Spindle Motor | 1 HP Brushless AC |
| Transmission | V Belt Type, 2 Ratios |
| Column Surface to Spindle Center | 8.625" |
| Distance Spindle Nose to Table Top | 14.8" Maximum |
| Cutting Feedrates X, Y / Z | 135 IPM / 110 IPM |
| Power Required | 115 VAC / 50/60 HZ |
| Amperage Required | 20 AMP Recommended |
| Machine Dimensions | 42" x 45" x 49" |
| Machine Weight | 662 lbs. |
