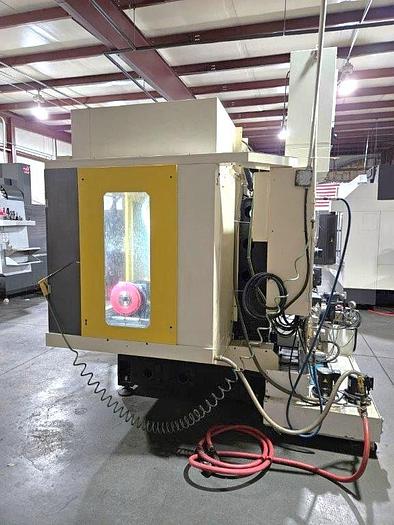

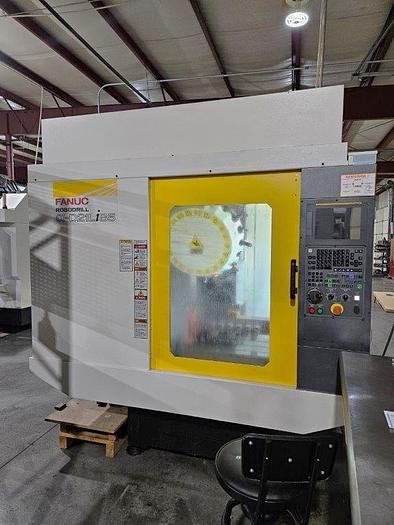

2017 Fanuc Robodrill Alpha-D21LiB5 with 4th Axis Rotary Table
2017 Fanuc Robodrill Alpha-D21LiB5 with 4th Axis Rotary Table
$69,500 (USD)
Location:Missouri
Description
Fanuc DDR-260 4th Axis Rotary Table w/ outboard trunnion support (vise on trunnion is NOT included)
4th Axis Drive & Wiring
1000 PSI Coolant Through the Spindle
Renishaw TS-27R Tool Measurement Probe
Renishaw OMP-40 Part Probe Ready (actual probe with stylus is not available with machine)
High Speed Machining
High Precision and Fine Surface Machining
Stable Machining
24,000 RPM Spindle
21 Station Tool Changer

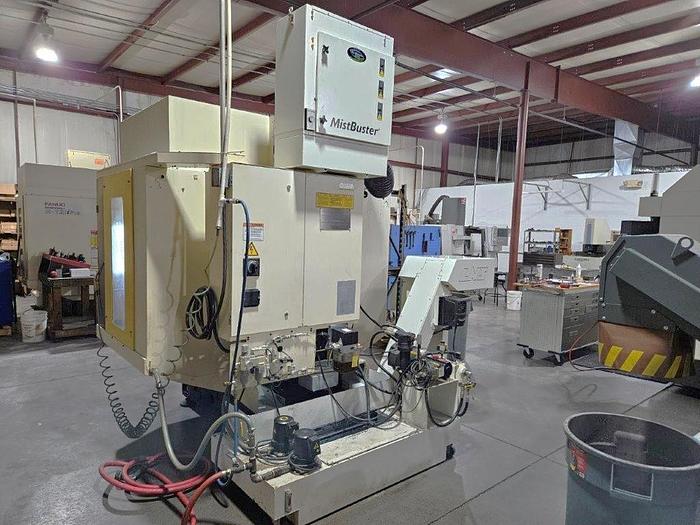

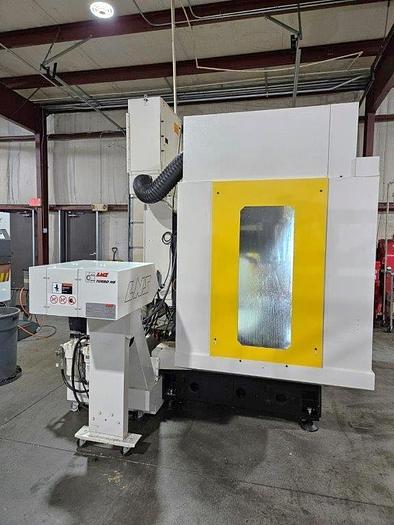

Chip Conveyor
Coolant Flush for Machine Cabinet
10.4" Color LCD Display USB Port Interface
RS 232 Port Interface
Chip / Coolant Pan with Pump
Spindle Orientation
Custom Macro
Coordinate System Rotation
All Available Manuals

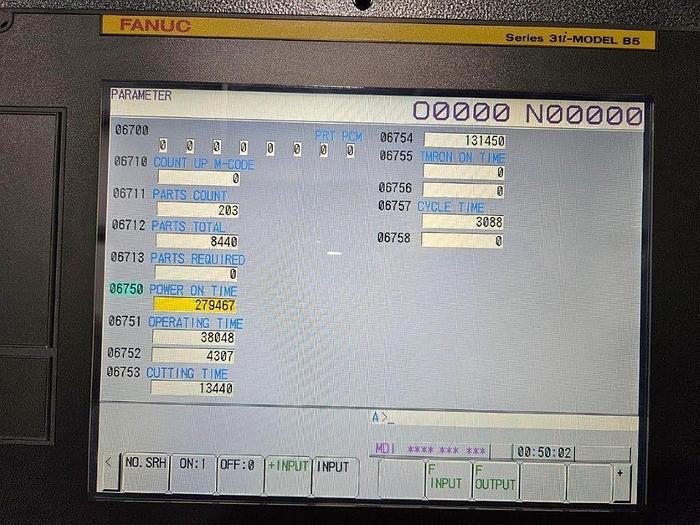

**Power On Time 4,657 Hours (279,467 minutes)
**Operating Time 706 Hours (42,355 minutes)
**Cutting Hours 2,414 (144,890 minutes)
**Price New As Equipped at Over $151,000**
Specifications
| Manufacturer | Fanuc |
| Model | Robodrill Alpha-D21LMiB5 with 4th Axis Rotary Table |
| Year | 2017 |
| Condition | Used |
| Stock Number | 119170 |
| Control | Fanuc 31i-B5 Control |
| Table Size | 33.49" x 16.15" |
| Maximum Table Load | 660 lbs. |
| X-Axis Travel | 27.58" |
| Y-Axis Travel | 15.76" |
| Z-Axis Travel | 13" |
| Spindle Nose to Table Top | 5.91" - 18.91" |
| Spindle Taper | BT #30 |
| Spindle Speed | 24,000 RPM |
| Spindle Motor 1 Minute / Continuous | 15 HP / 5 HP |
| Number of Tool Positions | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.15" / 9.85" / 6.6 lbs. |
| Tool Change Time Chip to Chip | 1.6 seconds |
| Rapid Traverse Rates | 2,127 IPM |
| Cutting Feedrates | 1182 IPM |
| Machine Dimensions | 86" x 81" x 89" |
| Machine Weight | 4,620 lbs. |
