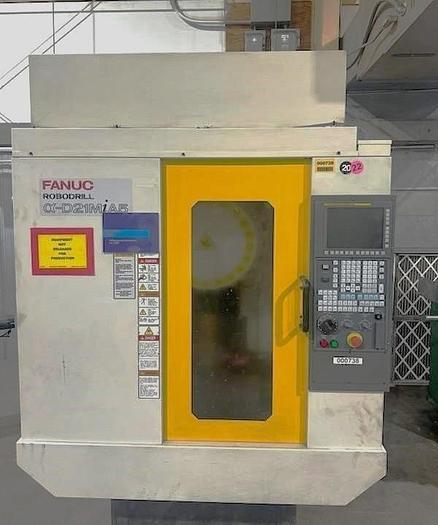

2013 Fanuc Robodrill Alpha-D21MiA5 w/ 24,000 RPM Spindle, 4th & 5th Axis Drive
2013 Fanuc Robodrill Alpha-D21MiA5 w/ 24,000 RPM Spindle, 4th & 5th Axis Drive
Contact us for price
Location:Ohio
orCall (863) 439-6066
Description
Prepped Coolant Through the Spindle - (needs pump)

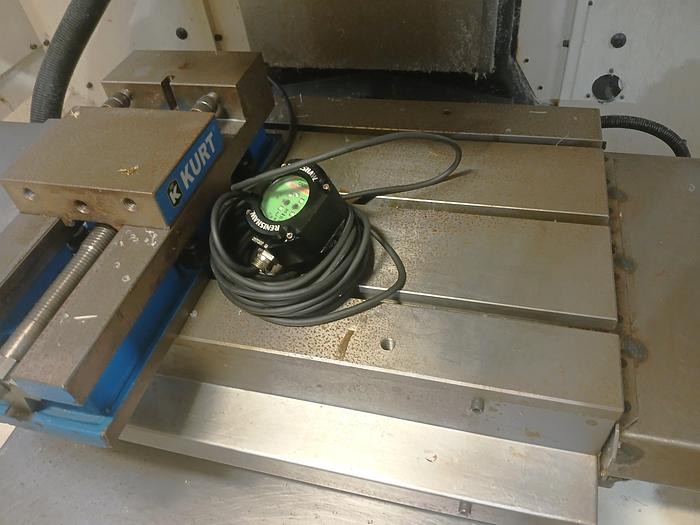

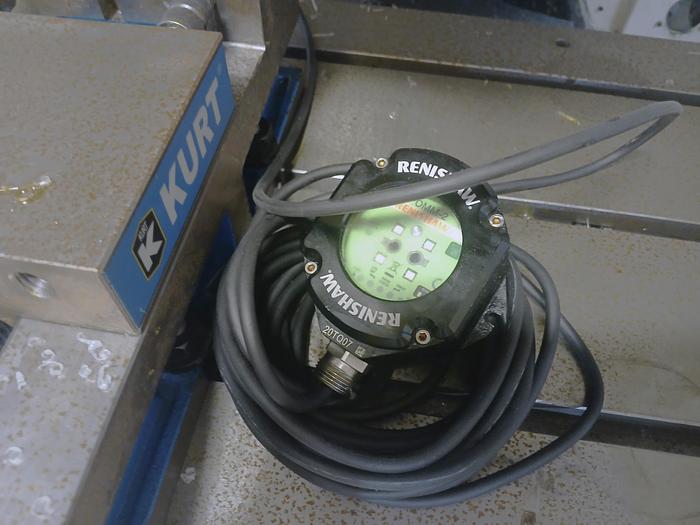

Renishaw OMM-2 Optical Probe Receiver
24,000 RPM Spindle
4th Axis Drive (needs code to turn on)
5th Axis Drive (needs code to turn on)

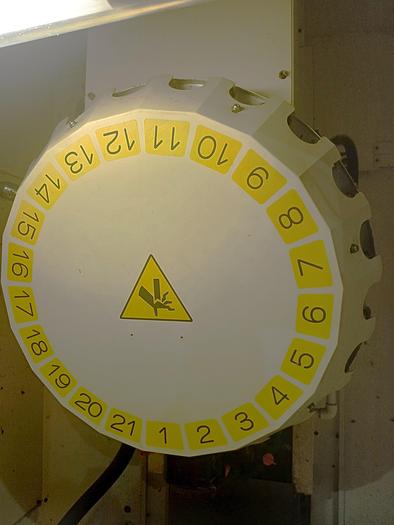

21 Station Tool Changer
Rigid Tapping
USB Port Interface
RS 232 Port Interface
Chip / Coolant Pan with Pump
Spindle Orientation
Custom Macro
Helical Interpolation
Coordinate System Rotation
Wired 200-220V 3 Phase Electrics
All Available Manuals
(1) Kurt Vise
**Manufactured New in February of 2013**

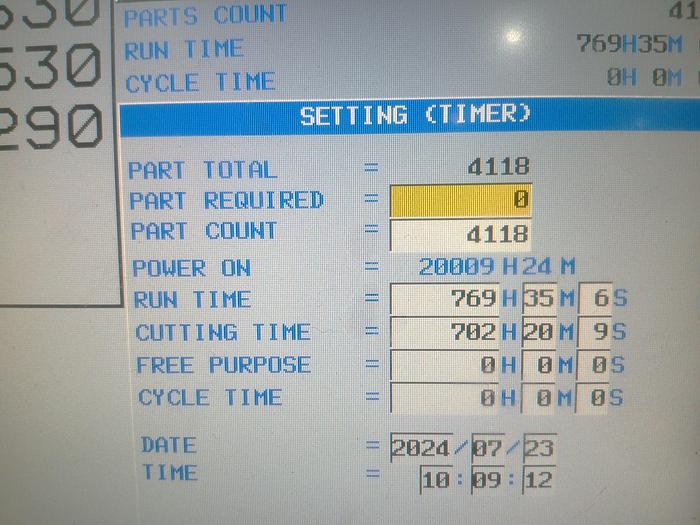

**Run Time Hours 769**
**Cutting Time Hours 702**
Specifications
| Manufacturer | Fanuc |
| Model | Robodrill Alpha-D21MiA5 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 119460 |

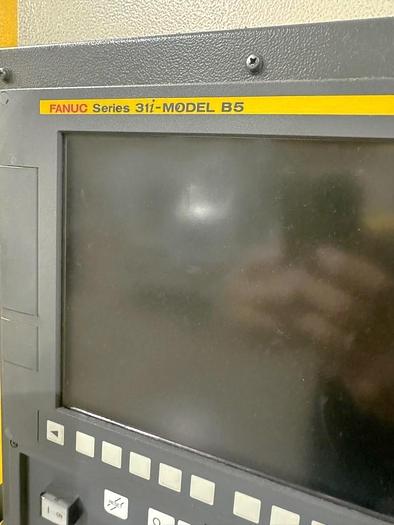

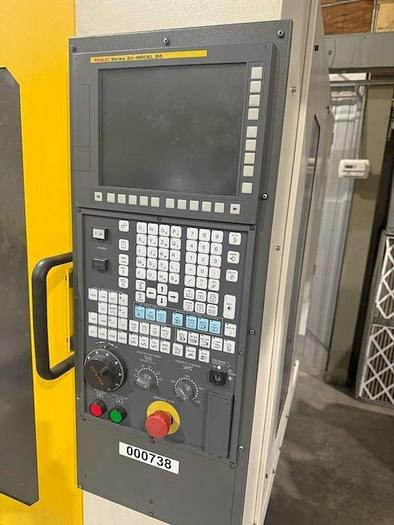

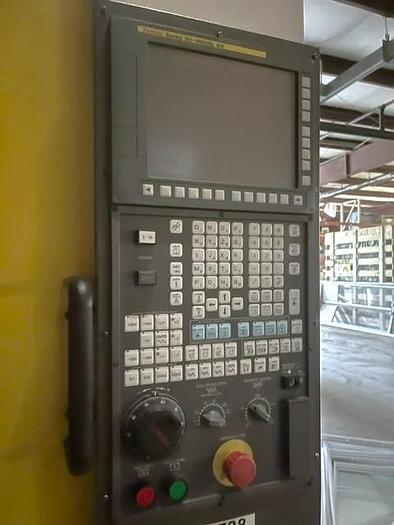

| Control | Fanuc 31i-Model B5 Control |
| Table Size | 25.61" x 15.76" |
| Maximum Table Load | 660 lbs. |
| X-Axis Travel | 19.7" |
| Y-Axis Travel | 15.76" |
| Z-Axis Travel | 13" |
| Spindle Taper | BT #30 |
| Spindle Speed | 24,000 RPM |
| Spindle Motor 1 Minute / Continuous | 35 HP / 7.5 HP |
| Distance Spindle Nose to Table Top | 5.9" - 18.9" |
| Number of Tool Positions | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 3.14" / 9.8" / 4.4 lbs. |
| Rapid Traverse Rates | 2,152 IPM |
| Cutting Feedrates | 1181 IPM |
| Machine Dimensions | 78" x 62" x 94" |
| Machine Weight | 4,440 lbs. |
